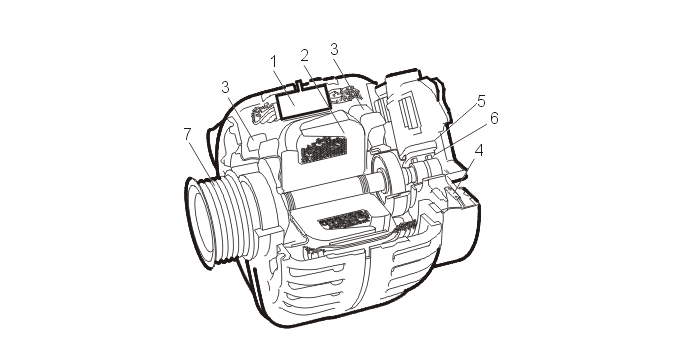

Exploded View Of The Generator

Fig 1: Identifying Generator Components

Courtesy of VOLVO CARS CORPORATION

The main components of the generator consist of:

1. Stator
2. Rotor with slip rings
3. Integrated cooling fans
4. Rectifier bridge
5. Charge regulator
6. Carbon brushes
7. Pulley with freewheel.

Alternator 150 A has double stator windings and diodes.
