Global Positioning System Module (GPS) (2006-2007): Design: Antenna

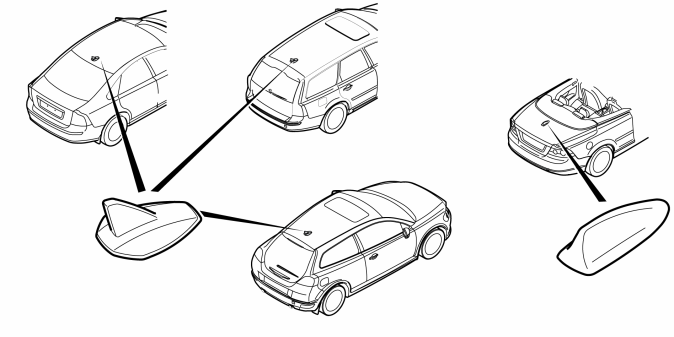

Fig 1: Identifying Antenna

Courtesy of VOLVO CARS CORPORATION

The global positioning system has an antenna. This antenna is a combined antenna for GPS and the carphone.

The antenna is powered with 4.75 ± 0.5 V by the GPS receiver, via a coaxial cable.

The antenna is on the roof.
