Audio Unit

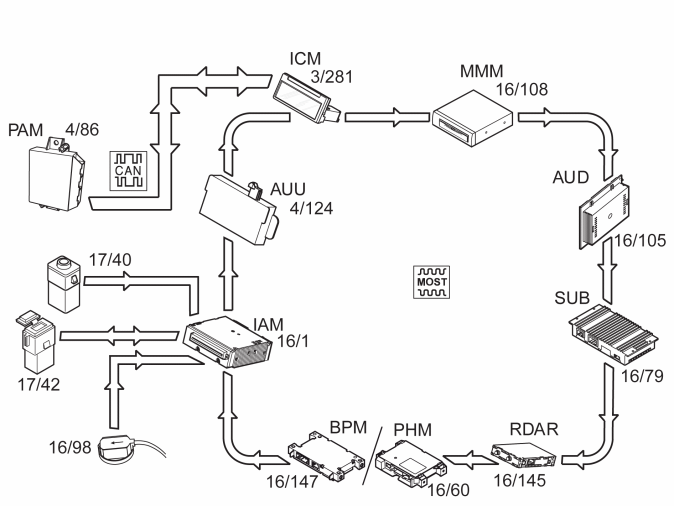

The integrated audio module (IAM) functions as a stereo system in the vehicle and is connected to other control modules on the MOST network.

Integrated audio module (IAM) controls settings for:

• Volume
• Bass
• Treble
• Balance
• Fader
• Equalizer

The Integrated Audio Module (IAM) compensates the sound amplitude depending on the vehicle speed and has automatic loudness.

If the vehicle is equipped with a Parking assistance module (PAM) a request is sent to the Integrated audio module (IAM), when audio is to be sent from the speakers than an object is close to the vehicle.

If the vehicle is equipped with a Multimedia module (MMM) the voice guidance (navigation) will be played over the vehicle's speakers.

The analog microphone signals are sent with telephone calls via the handsfree to the Integrated audio module (IAM). The signals are then sent via the MOST network to the Bluetooth phone module (BPM).

Speaker sound is sent from the Bluetooth phone module (BPM) to the Integrated audio module (IAM) via the MOST network.

Integrated Audio Module (IAM) handles playing of compressed music format fr CD-disc (does not apply to Performance).

Support available for following formats:

• mp3
• wma

From structure week 200846, there is support for playback of music via a USB/iPod-connection in the tunnel compartment (does not apply to Performance or CD-changers for 6 discs). Support available for the following formats:

• mp3
• wav
• wma

From structure week 200846, there is support for reception of digital HD-radio (does not apply to Performance or CD-changers for 6 discs).

HD radio is transmitted digitally on the AM respectively FM wavelength in USA. The Integrated Audio Module (IAM) automatically switches to digital HD radio reception if there is a current frequency and if the function for HD-radio is highlighted in the user menu.

When the Integrated Audio Module (IAM) receives digital HD radio, a symbol appears for HD radio in the Infotainment control module (ICM).
