Traffic Message Reception

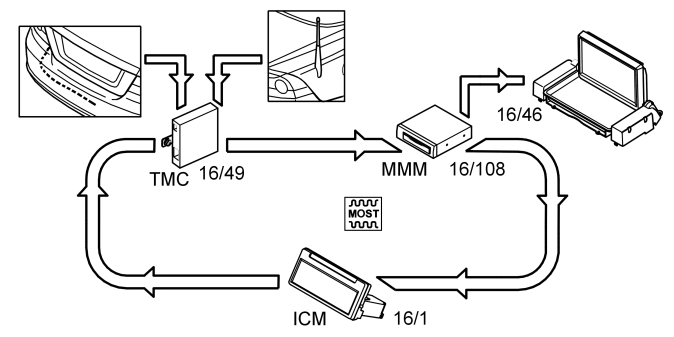

Fig 1: Identifying Traffic Message Reception For C70

Courtesy of VOLVO CARS CORPORATION

The traffic message signal which is transmitted via radio is received by the antenna. The signal is sent onwards via the antenna amplifier (16/16) to the traffic message channel module (TMC) (16/49). The traffic message channel module (TMC) sends the signal onwards via the MOST network to the receiver in the multimedia module (MMM) (16/108).

The multimedia module (MMM) presents this information on the directly connected display (16/46).
