Explanation Of Dimensions

Fig 1: Body Dimension Measuring Point Symbols

Courtesy of VOLVO CARS CORPORATION

The dimensions in the table are listed as follows:

Symbol number 1 means that the measurement is taken from the center.

Symbol number 2 means that the measurement is taken from one edge.

Courtesy of VOLVO CARS CORPORATION

Symbol number 3 means that the measurement is taken from a cut mark. Measurements are taken from the bottom of the recess as shown.

If only one measuring point symbol is displayed, the symbol applies to both measuring points. Otherwise the symbols are shown on each side of the dimension shown.

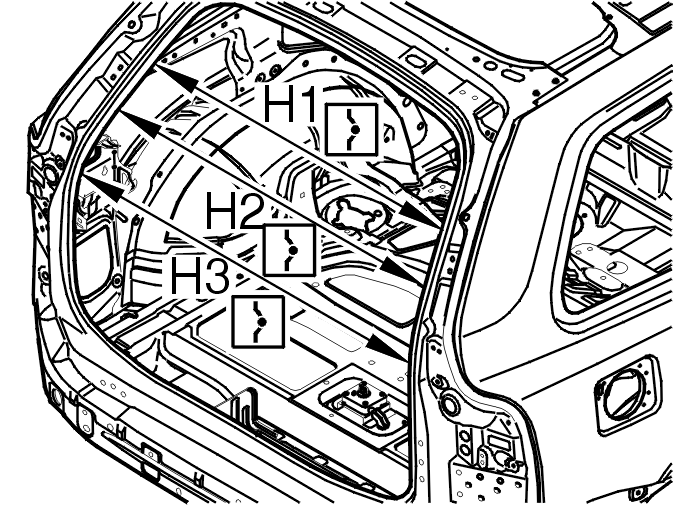

Fig 2: Rear Body Position Measurement Locations (1 Of 4)

Courtesy of VOLVO CARS CORPORATION

H1 = 984 mm

H2 = 1046 mm

H3 = 1128 mm

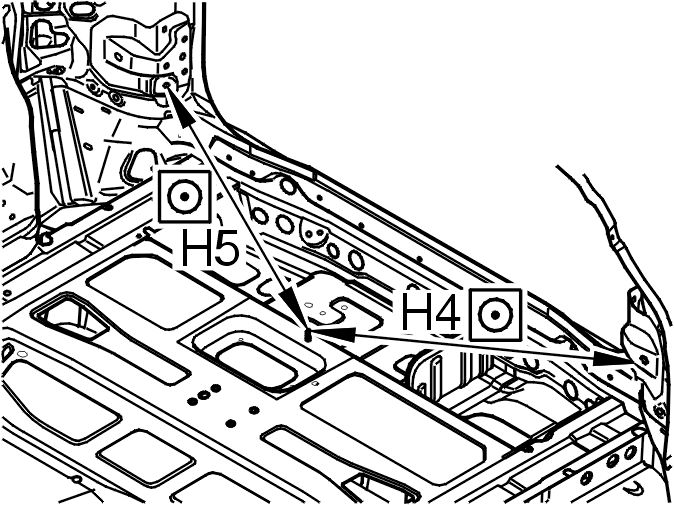

Fig 3: Rear Body Position Measurement Locations (2 Of 4)

Courtesy of VOLVO CARS CORPORATION

H4 = 692 mm

H5 = 620 mm

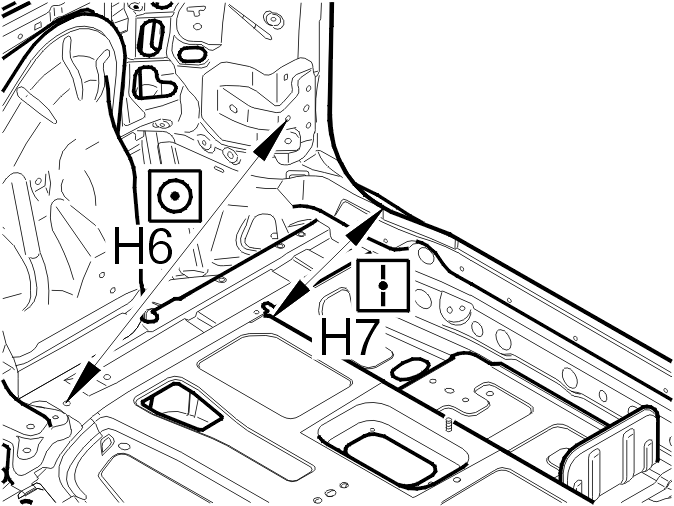

Fig 4: Rear Body Position Measurement Locations (3 Of 4)

Courtesy of VOLVO CARS CORPORATION

H6 = 620 mm

H7 = 262 mm

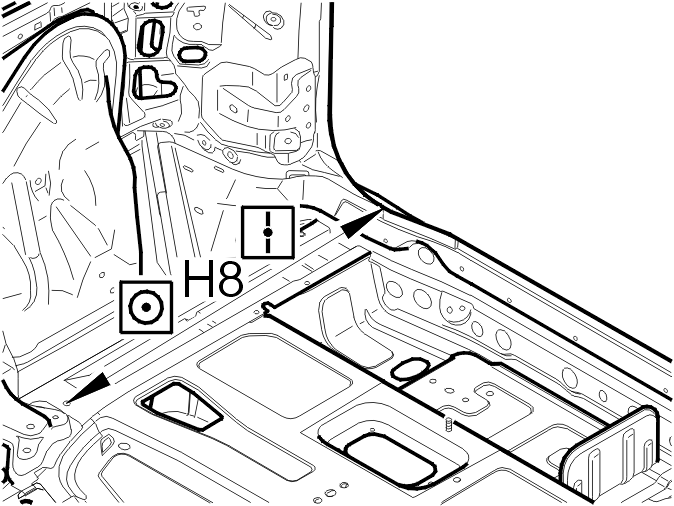

Fig 5: Rear Body Position Measurement Locations (4 Of 4)

Courtesy of VOLVO CARS CORPORATION

H8 = 650 mm
