Global Positioning System Module (GPS) (2007-2014): Design: Antenna

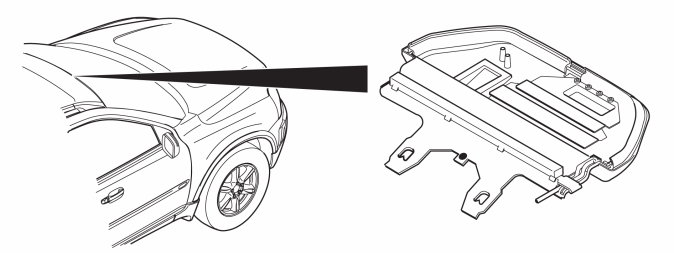

Fig 1: Locating GPS Antenna

Courtesy of VOLVO CARS CORPORATION

The global positioning system has an antenna. This antenna is a combined antenna for GPS and the carphone.

The GPS receiver supplies the antenna power at 0 - 4.75 ±0.5 V via a coaxial cable.

The antenna is located in front of the inner rear view mirror.
