Front Lighting

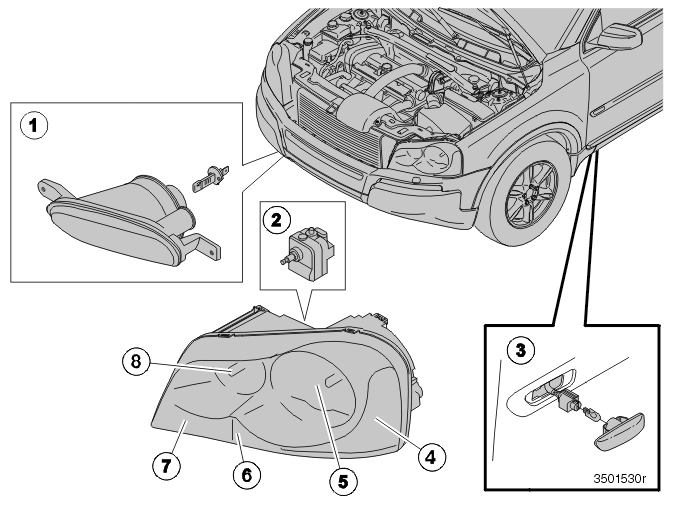

Fig 1: Identifying Front Lighting

Courtesy of VOLVO CARS CORPORATION

1. Fog lamps
2. Motor, headlamp range adjustment
3. Side turn signal flashers
4. Sidemarker lamps
5. Low beam
6. Parking lamps
7. Turn signal lamps
8. High beam.

Front lighting

Unique to this design is that the entire headlamp housing can be removed. The entire headlamp housing is removed to replace the headlamp and bulbs.

• The lens is made of clear plastic
• There are separate reflectors for high and low beam
• Integrated turn signal lamps and parking lamps
• Headlamp range adjustment is as before.

Bi-xenon

Available as a factory option.

Fog lamps

Positioned in the bumper.
