Tail Lamps

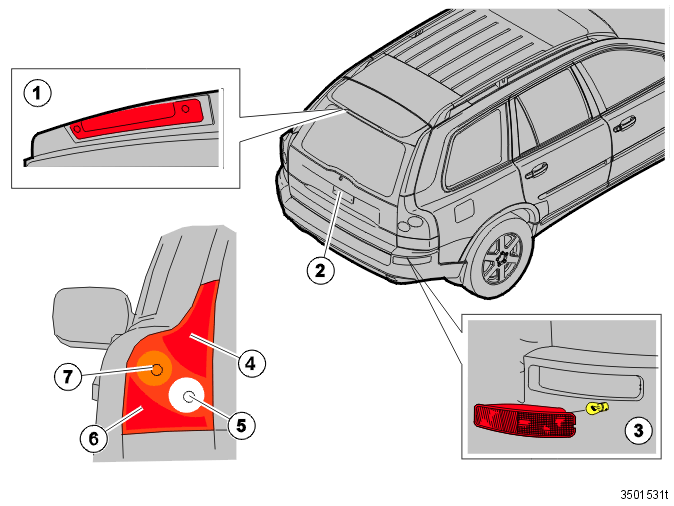

Fig 1: View of Tail Lamps

Courtesy of VOLVO CARS CORPORATION

1. Stop lamp (LED)
2. License plate lighting
3. Fog tail lamp (Parking lamps, USA)
4. Stop lamps
5. Back-up (reversing) lamp
6. Parking lamps (Fog tail lamp, USA)
7. Turn signal lamps.

Tail lamps

A new design where the entire tail lamp can be detached when changing bulbs.

• High mounted stop lamp in the spoiler
• The fog tail lamp is integrated in the bumper. (Parking lamps, USA)
• A new type of bulb has been introduced. Two wire (4/P21W).
