Fuel Pump Driver Module: Notes

Operation Number(s):

NOTE:

Removal steps in this procedure may contain installation details.

Fig 1: Identifying Ignition In OFF Position

Courtesy of VOLVO CARS CORPORATION

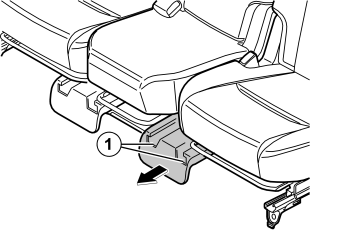

Fig 2: Identifying Covers Over Seat Rails

Courtesy of VOLVO CARS CORPORATION

Remove:

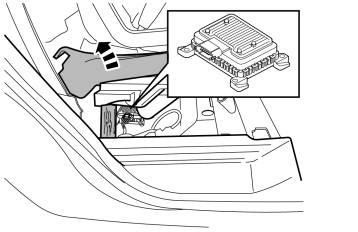

Fig 3: Installing A New Module

Courtesy of VOLVO CARS CORPORATION

Fold up the carpet. Detach the sill trim panel slightly.

Carefully lift up the insulation block and place a block under the insulation block to access the module.

Install the new module and connect the cable connector.

Remove the block and fold the carpet back. Press the sill trim panel into place.

Fig 4: Identifying Covers Over Seat Rails

Courtesy of VOLVO CARS CORPORATION

Install the seat. Use new screws, 4 x M10. Tighten to 50 Nm.
