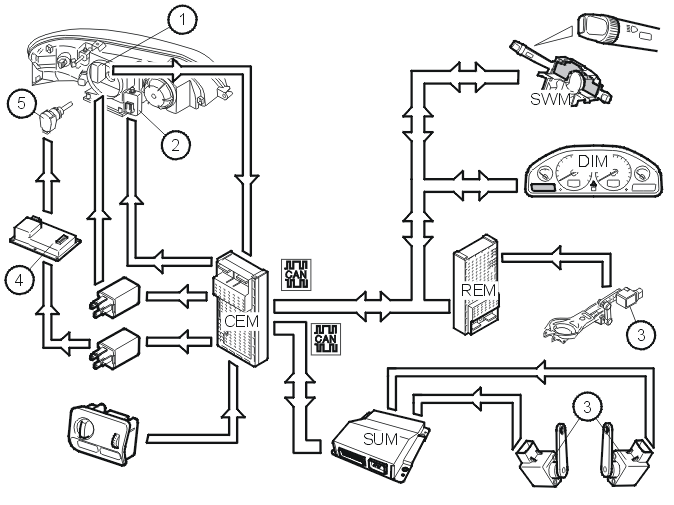

| 1. |
Motor, high / low beam |
Power supply via relay. Reconnected PWM signal provides information about the position of the reflector to the central electronic module (CEM). |
| 2. |
Motor, headlamp range adjustment |
Controlled by the central electronic module (CEM) using a PWM signal. |
| 3. |
Position sensor |
Inductive sensor which sends an analog signal (voltage) to the rear electronic module (REM) (Does not apply to vehicles with Four-C (Continuously Controlled Chassis Concept)). In vehicles with Four C the signal travels via the suspension module. |
| 4. |
Ballast |
High voltage regulator for switch and lamp. |
| 5. |
Gas discharge lamp |
Socket |
