Control Module

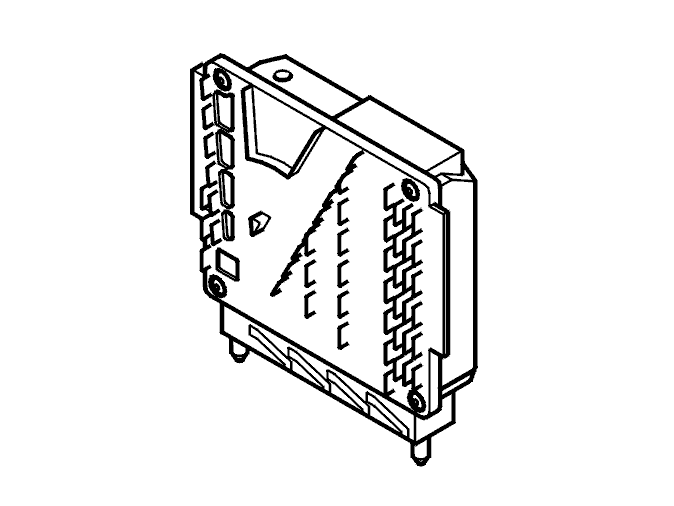

Fig 1: Identifying Transmission Control Module
GLL104332Courtesy of VOLVO CARS CORPORATION

The transmission control module (TCM) is positioned in an air cooled plastic box in the engine compartment together with the engine control module (ECM).
