Sun Roof

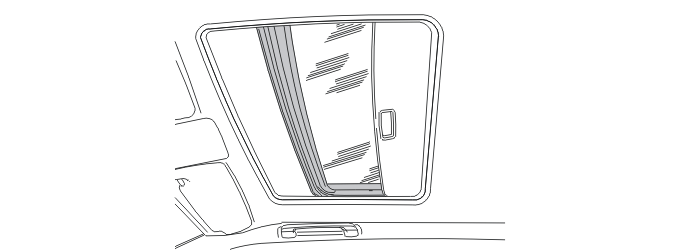

Fig 1: Identifying Sun Roof Module
GLL106994Courtesy of VOLVO CARS CORPORATION

The Sun Roof Module is operated by one switch. The switch is located in the same unit in the roof as the front reading lamps and the courtesy lighting. The sun roof can be opened, closed and tilted.

The sun roof is powered by a motor in the roof in front of the sun roof. The position of the sun roof is determined by two optical sensors.

There are diagnostics for the sun roof.
