Installing The Control Module

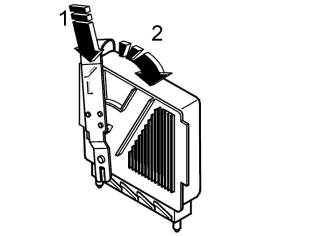

Fig 1: Identifying Control Module Installation

Courtesy of VOLVO CARS CORPORATION

Carefully press the control module down into the grooves on the inside of the control module box. Press down all the way.

Insert tool see 9995722 around the control module.

Move the upper section of the tool forwards to stop and pull it up.

Press the cover into place over the control modules.

Check that the air ducts are correctly positioned.

Connect the battery negative lead. First read, see BATTERY, DISCONNECTING .
