Resistance Values, Fuel Level Sensor

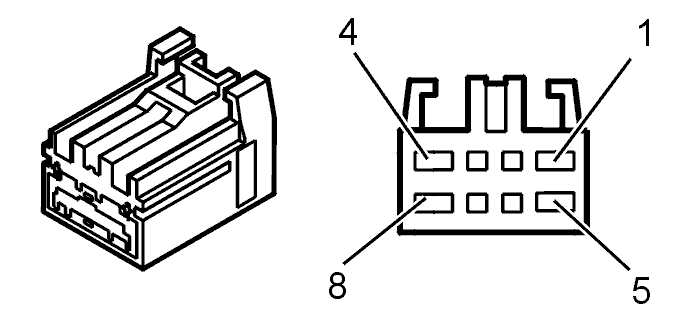

Readings for the left fuel level sensor are taken between terminals #5 and #6.
Readings for the right fuel level sensor are taken between terminals #7 and #6.
The following table lists the fuel level sensor resistance and the corresponding fuel volume.
| Resistance (ohm) | Fuel volume (liters) |
|---|---|
| 12 | 40 |
| 38 | 35 |
| 66 | 30 |
| 96 | 25 |
| 130 | 20 |
| 171 | 15 |
| 223 | 10 |
| 297 | 5 |
| 383 | 1 |
