Multimedia Module (Mmm) (2007-2014): Design: Screen

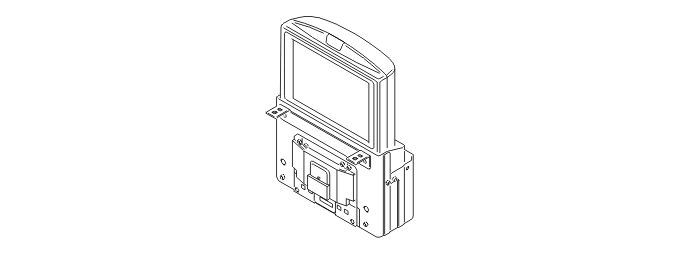

Functions such as system settings and navigation are presented on the display screen in the center of the dashboard. The Multimedia module (MMM) transmits RGB signals to the display screen.
If there is an internal fault in the screen or faults in communication with the control module, the quality of the display on the screen will deteriorate or the screen will stop working completely. A simple way to detect a fault in the screen, or communication problems between the screen and the control module, is to check the appearance of the image on screen.
The screen's menu system can be controlled with the navigation keys on the back of the steering wheel or with the remote control for the screen.
The infra-red receiver for the remote control is in the infotainment control module (ICM) (just under the volume knob). The infra-red receiver at the upper edge of the monitor is not active.
