GPS Reception

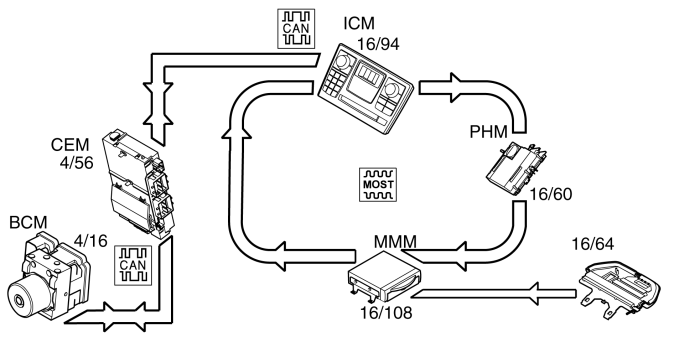

Fig 1: Networking Diagram

Courtesy of VOLVO CARS CORPORATION

The multimedia module (MMM) (16/108) receives GPS signals from the GPS antenna (16/64) to the integrated GPS unit for position determination.

The information about the vehicle's position is continuously transmitted from the Multimedia module (MMM) via the MOST network to the Phone module (PHM) (16/60) for the Volvo On Call function.

A telephone number can also be sent from the Multimedia module (MMM) via the MOST network to the Phone module (PHM), to make a call to a hotel for example.
