Oil Scraper Plate

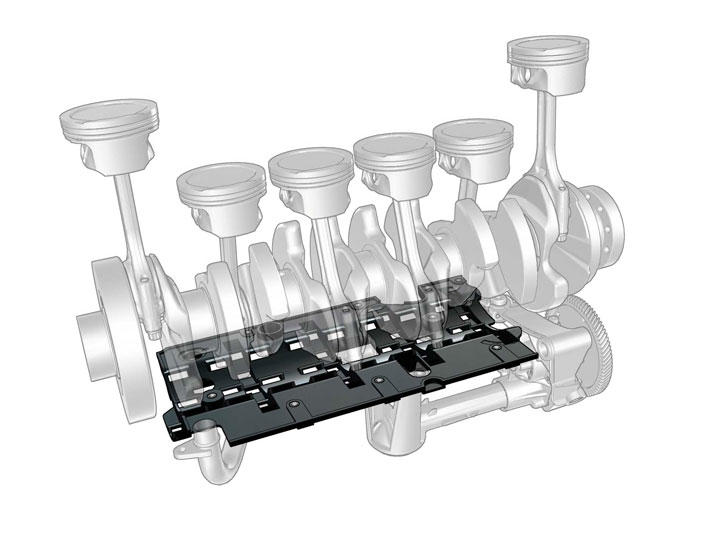

Fig 1: Identifying Oil Scraper Plate
GLL177781Courtesy of VOLVO CARS CORPORATION

Under the crankshaft there is an oil scraper plate that is to prevent the oil from following along with the crankshaft in the crank movement. The plate is updated and is now located closer to the crankshaft and has integrated drain pipes. With these changes it has been possible to reduce the oil volume.
