Cooling System
The combustion of fuel in the vehicle engine produces both mechanical motion and excess energy. The excess energy takes the form of heat that is led away from the engine via:
- exhaust gases
- convection to the air in the engine compartment
- transfer to the coolant in the cooling system
- the engine oil.

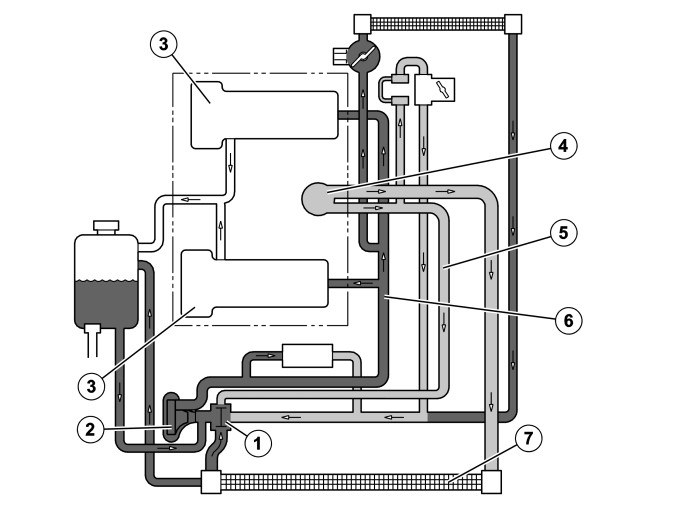

The thermostat (1) regulates the amount of coolant to the engine. The wax body in the thermostat expands when subjected to heat.
The coolant is pumped by the coolant pump (2) to the inlets (6) for the cylinder heads (3). The coolant flows forward through the relevant cylinder head and on through the cylinder banks back to the common outlet (4). After passing the engine the coolant flows by:
- Closed thermostat through the bypass pipe (5) back to the coolant pump without cooling off.
- Open thermostat through the radiator (7) to the coolant pump. The coolant also flows through the bypass pipe back to the coolant pump.
