Audio Module (AUD) (2003-2006): Design: Microphone

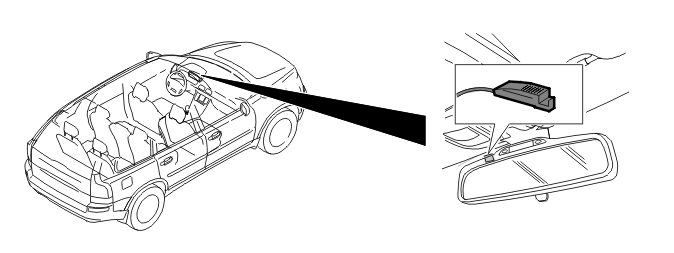

Fig 1: Locating Microphone

Courtesy of VOLVO CARS CORPORATION

All versions of the audio module (AUD) have a microphone which is directly connected to the control module. The microphone is installed in the rear view mirror.

The microphone is used for functions such as handsfree in the phone module (PHM).
