Explanation Of Dimensions

Fig 1: Body Dimension Measuring Point Symbols

Courtesy of VOLVO CARS CORPORATION

The dimensions in the table are listed as follows:

Symbol number 1 means that the measurement is taken from the center.

Symbol number 2 means that the measurement is taken from one edge.

Courtesy of VOLVO CARS CORPORATION

Symbol number 3 means that the measurement is taken from a cut mark. Measurements are taken from the bottom of the recess as shown.

If only one measuring point symbol is displayed, the symbol applies to both measuring points. Otherwise the symbols are shown on each side of the dimension shown.

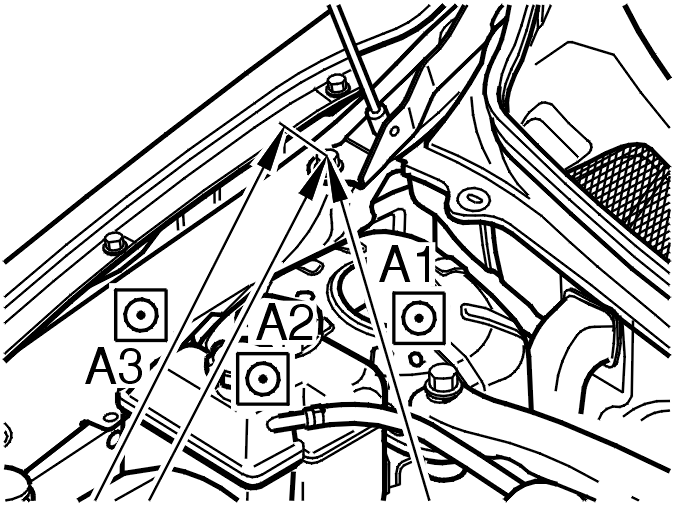

Fig 2: Engine Compartment Position Measurement Locations (1 Of 6)

Courtesy of VOLVO CARS CORPORATION

A1 = 1282 mm

A2 = 791 mm

A3 = 954 mm

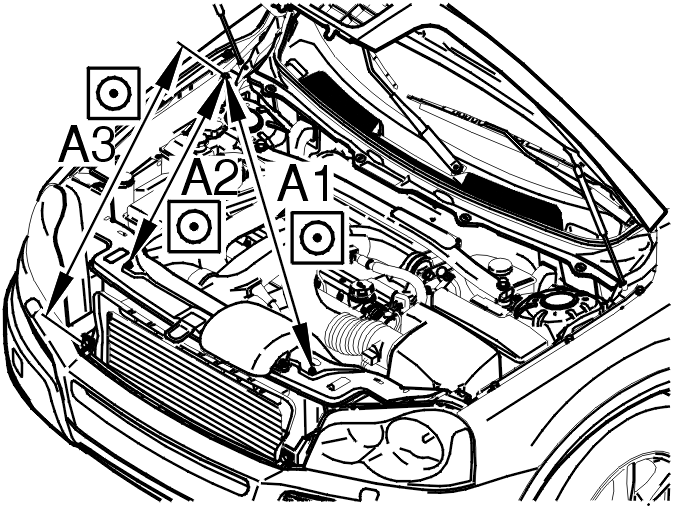

Fig 3: Engine Compartment Position Measurement Locations (2 Of 6)

Courtesy of VOLVO CARS CORPORATION

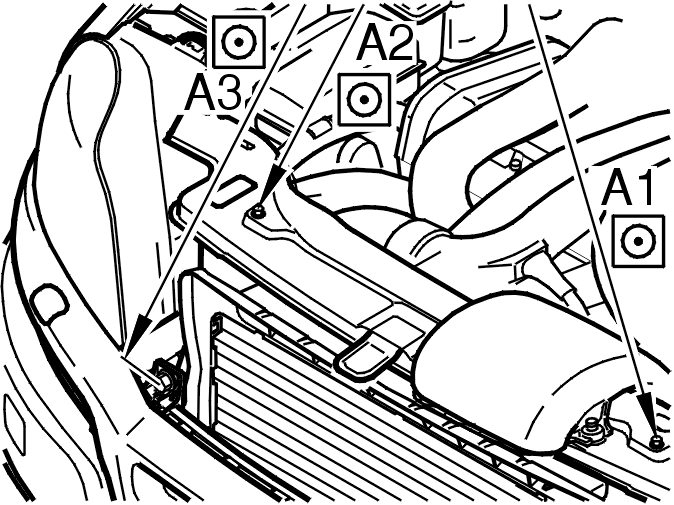

Fig 4: Engine Compartment Position Measurement Locations (3 Of 6)

Courtesy of VOLVO CARS CORPORATION

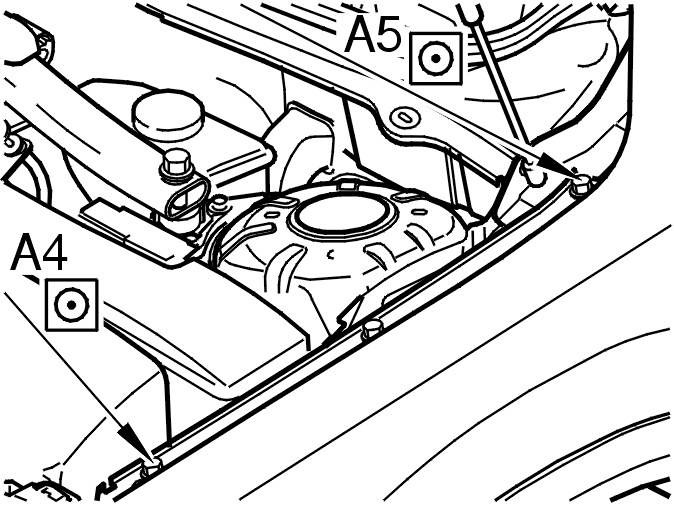

Fig 5: Engine Compartment Position Measurement Locations (4 Of 6)

Courtesy of VOLVO CARS CORPORATION

A4 = 1616 mm

A5 = 1570 mm

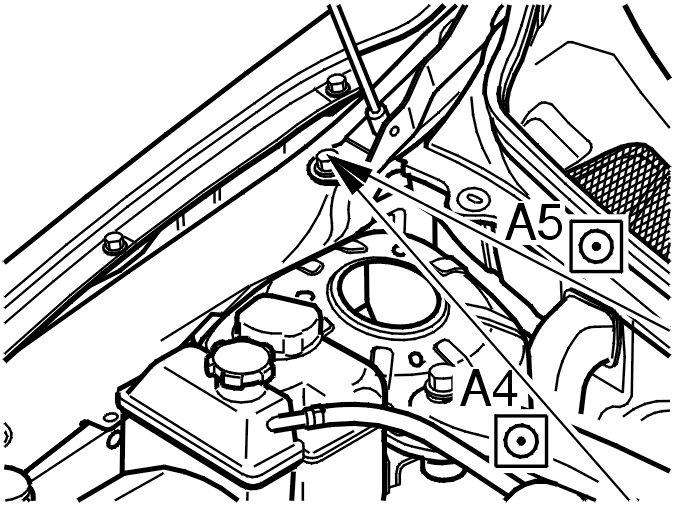

Fig 6: Engine Compartment Position Measurement Locations (5 Of 6)

Courtesy of VOLVO CARS CORPORATION

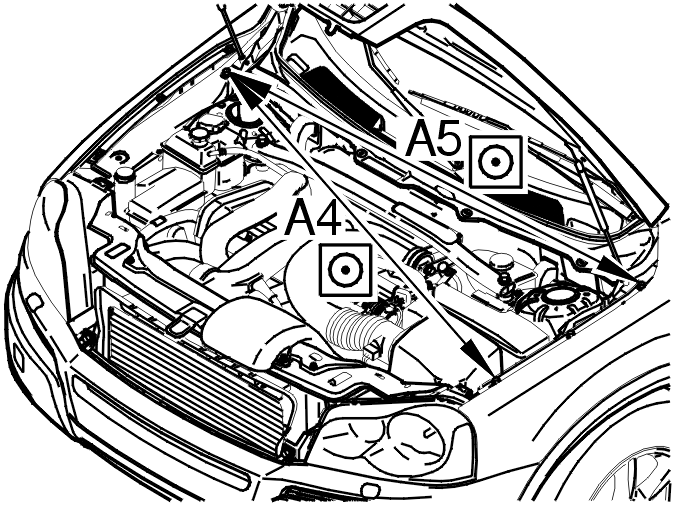

Fig 7: Engine Compartment Position Measurement Locations (6 Of 6)

Courtesy of VOLVO CARS CORPORATION
