Roof, Alignment Chart

Fig 1: Body Dimension Measuring Point Symbols

Courtesy of VOLVO CARS CORPORATION

The dimensions in the table are listed as follows:

Symbol number 1 means that the measurement is taken from the center.

Symbol number 2 means that the measurement is taken from one edge.

Courtesy of VOLVO CARS CORPORATION

Symbol number 3 means that the measurement is taken from a cut mark. Measurements are taken from the bottom of the recess shown.

If only one measuring point symbol is displayed, the symbol applies to both measuring points. Otherwise the symbols are shown on each side of the dimension shown.

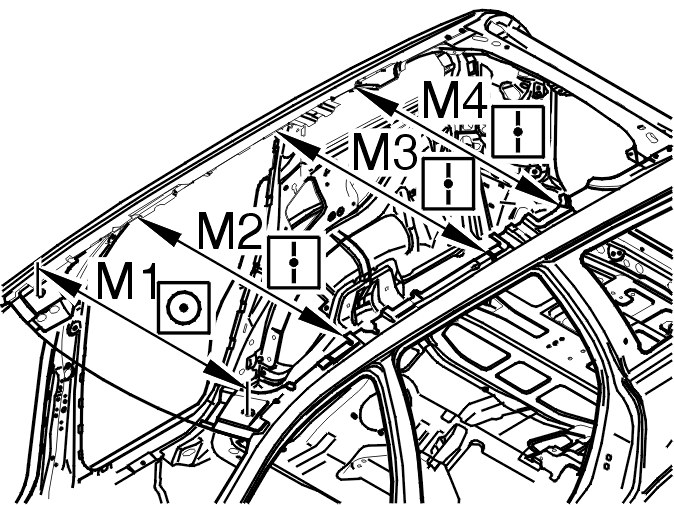

Fig 2: Roof Side Rail Position Measurement Locations (1 Of 4)

Courtesy of VOLVO CARS CORPORATION

M1 = 980 mm

M2 = 951 mm

M3 = 978 mm

M4 = 949 mm

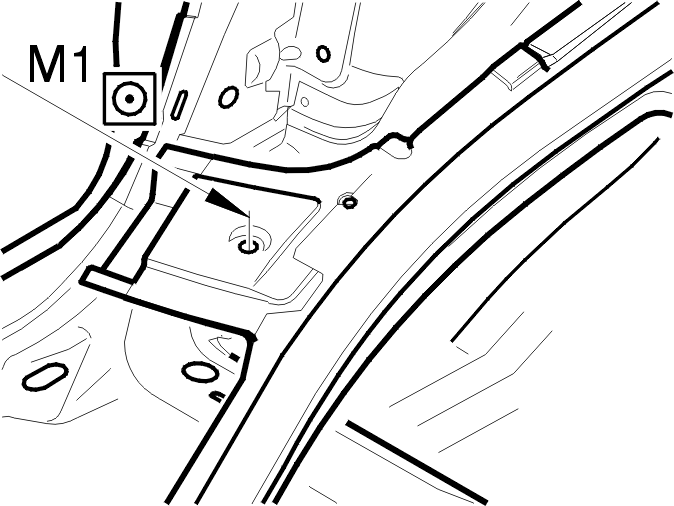

Fig 3: Roof Side Rail Position Measurement Locations (2 Of 4)

Courtesy of VOLVO CARS CORPORATION

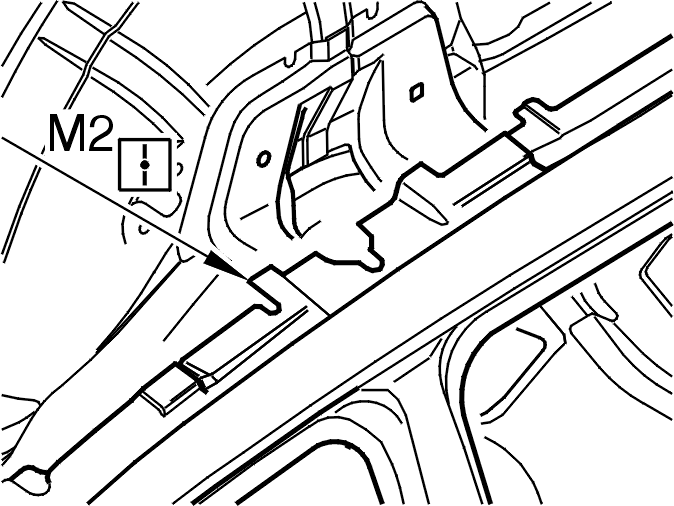

Fig 4: Roof Side Rail Position Measurement Locations (3 Of 4)

Courtesy of VOLVO CARS CORPORATION

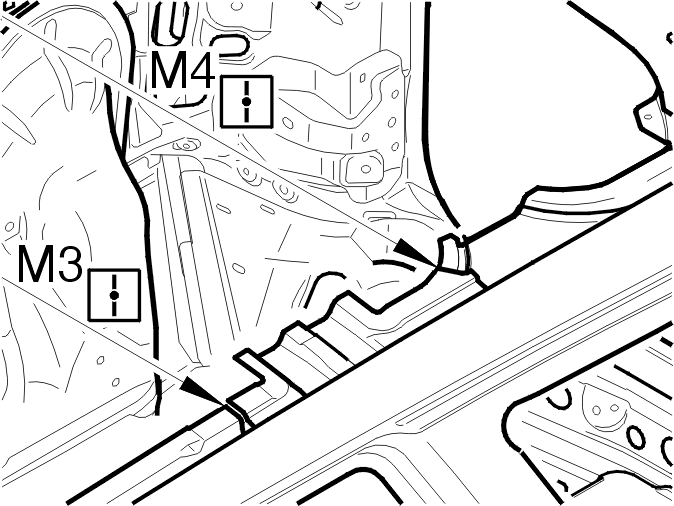

Fig 5: Roof Side Rail Position Measurement Locations (4 Of 4)

Courtesy of VOLVO CARS CORPORATION
