Cylinder Head

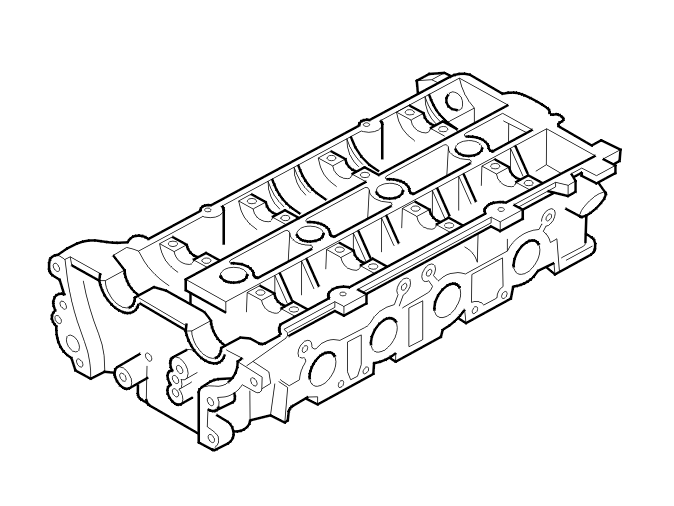

Fig 1: Identifying Cylinder Head
GLL150597Courtesy of VOLVO CARS CORPORATION

The engine's two cylinder heads are in principle mirror images of each other. The cast oil galleries in the cylinder head ensures good oil supply to the camshafts and the mechanical valve lifters.
