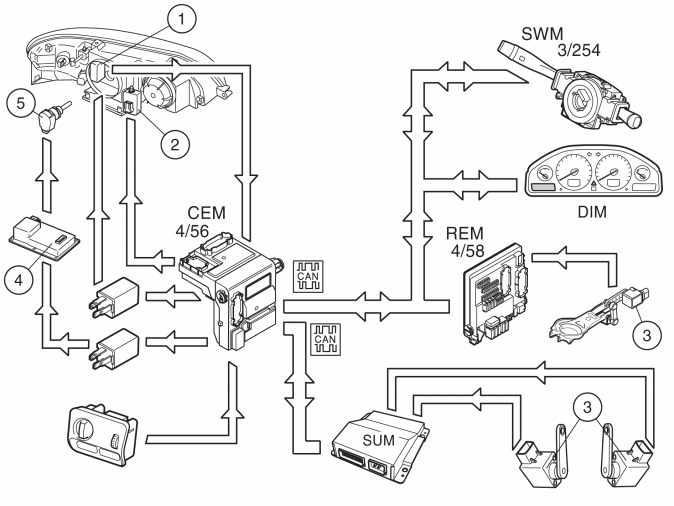

| 1. |
Motor, high/low beam |
Power supply via relay. Feedback PWM signal gives central electronic module (CEM) information on reflector position. |
| 2. |
Motor, headlight levelling |
Regulated by central electronic module (CEM) via PWM signal. |
| 3. |
Position sensors |
Inductive sensor that transmits an analogue signal (voltage) to the rear electronic module (REM) (not vehicles equipped with Four-C (Continuously Controlled Chassis Concept)). On vehicles with Four-C, the signal travels via the suspension module. |
| 4. |
Ballast |
High voltage regulator for contact and lamp. |
| 5. |
Gas discharge lamp |
Socket |
