Starter Motor (2003-2014): Design: Principle

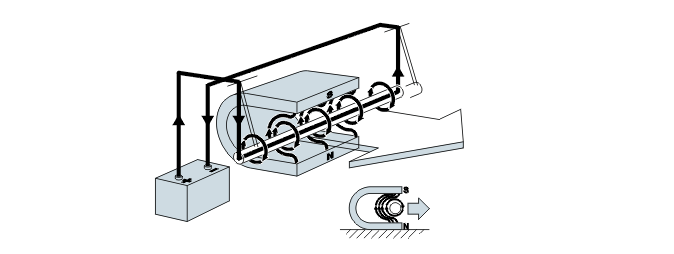

Fig 1: Identifying Starter Motor Operation Principle

Courtesy of VOLVO CARS CORPORATION

The starter motor is a DC motor which uses a permanent magnet. This type of motor operates following the principle that the same poles (North/North) are forced away from each other and opposite poles (North/South) are drawn to each other.
