Engine Control Module (ECM)

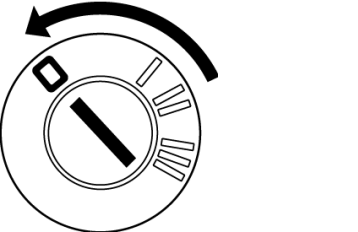

Fig 1: Identifying Ignition Switch In OFF Position

Courtesy of VOLVO CARS CORPORATION

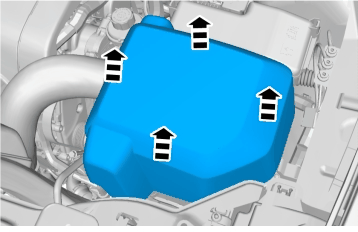

Fig 2: Lifting the Cover

Courtesy of VOLVO CARS CORPORATION

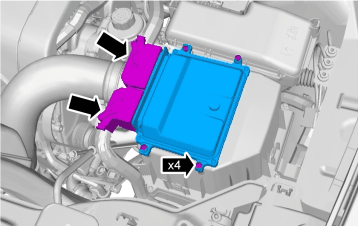

Fig 3: Locating Engine Control Module (ECM)

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the component terminals are not bent or damaged.

NOTE:

Make sure that the seal remains correctly located.

To install, reverse the removal procedure.

Order and download software 9438288 .
