Ignition Switch

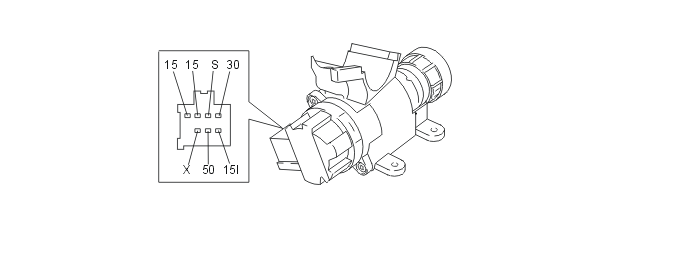

Fig 1: Identifying Ignition Switch

Courtesy of VOLVO CARS CORPORATION

The Engine Control Module (ECM) uses the signal from the ignition switch to detect when the ignition key has been turned to position II or III. When the key is in the ignition position (position II) or starting position (position III) a high signal (U_bat ) is transmitted from the ignition switch to the engine control module (ECM). The engine management system prepares for start-up (for example, temporarily activates the fuel pump (FP) relay). When the flywheel in the engine rotates, the engine speed (RPM) sensor signal is used to keep the fuel pump (FP) relay activated.

The fuse in the fusebox in the passenger compartment supplies current to the ignition switch.

The central electronic module (CEM) has diagnostics for the ignition switch.
