Side Impact Sensor
The side impact sensors in the vehicle are used to measure the collision pulses.

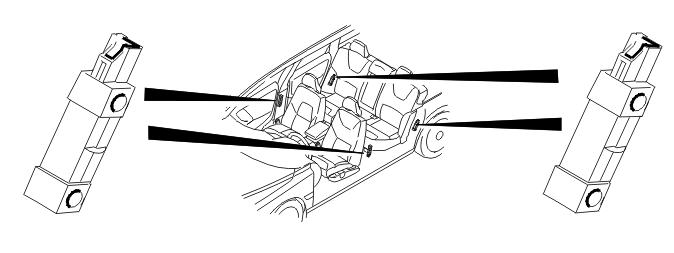

The four sensors which are used in the car are:
- 1 side impact sensor in each left and right B post
- 1 side impact sensor in each left and right C post.
The side impact sensors have integrated logic. In the event of a collision, they determine whether the impact was large enough to warrant transmitting an activation signal to the control module to deploy the side impact airbag. Only the side impact protection on the side from which the activation signal was sent can be deployed.
The side impact sensors transmit continuous signals to the control module to indicate that they are working. In the event of a fault in the side impact sensor, a fault signal is transmitted to the control module which then stores a diagnostic trouble code (DTC). A diagnostic trouble code (DTC) is stored when the communication between the control module and one of the side impact sensors does not function. Each side impact sensor has a software ID. The ID is used to check that the correct side impact sensor is installed. This is because the activation level of the signal which is transmitted to the control module is not necessarily the same for the different side impact sensors.
The front (B-post) and rear (C-post) side impact sensors are a different color and have different coding on their connectors to simplify installation.
The front side impact sensors cannot be installed in the position for the rear side impact sensors and vice versa.
Data is transmitted on the same cable used for power supply.
