Main Fuse Box With Fuses And Battery Diode.

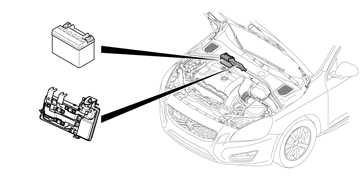

The main fuse box battery is located in the "plenum chamber" (cold zone) and contains relays and fuses related to start/stop, and also a battery diode. The main fuse box is two-piece with front and rear. The front contains components related to start/stop.
Ob vehicles with start / stop several other fuses are moved from the relay/fuse box in the engine compartment to the main fuse box in the "plenum chamber".
Images of the two-pieces of the main fuse box

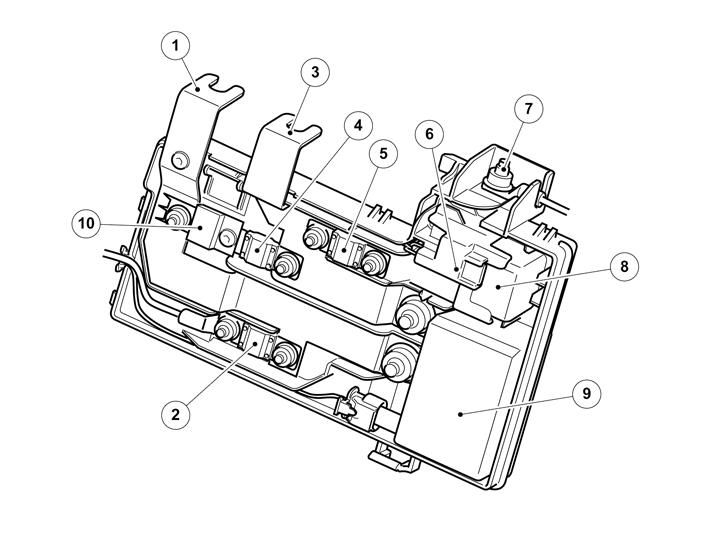

Front
- Terminal main battery
- Battery diode
- Connecting to the rear of the main fusebox
- Fuse for battery diode
- Fuse for secondary battery
- Fuse for supply voltage secondary battery
- Terminal secondary battery
- Battery relay (secondary battery)
- Battery relay (main battery)
- Fuse for starter motor solenoid
NOTE:
In the event of a repair it is important not to mix up the positions of the wiring on the respective terminal.

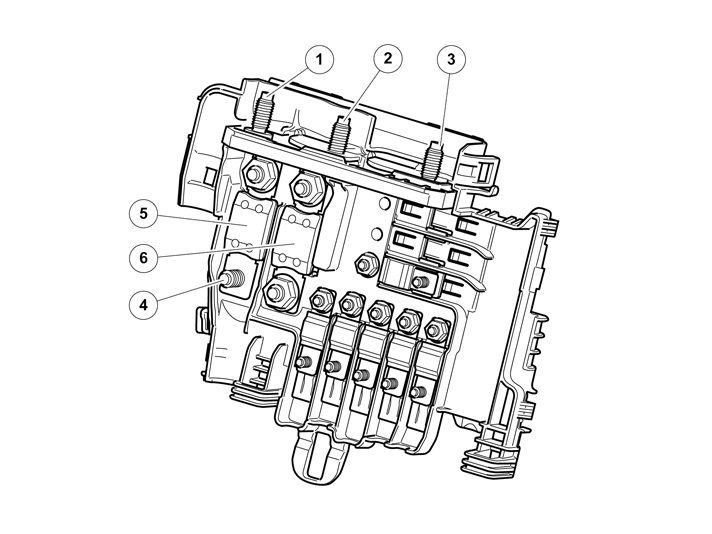

Rear
- Terminal main battery (same terminal as number 1 on front)
- Connecting to the front of the main fusebox
- Terminal alternator
- Connection to integrated relay and fuse box in the engine compartment
- Fuse for integrated relay and fuse box in engine compartment
- Fuse for alternator supply
Starter motor fuse and fuse for main fuse box is located directly on the battery terminal.
