Transmission Components

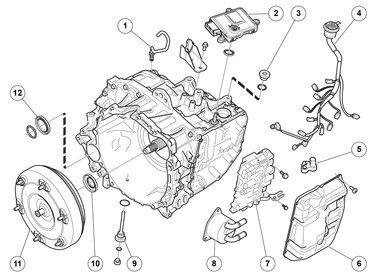

| 1. Breather | 5. Speed sensor, input shaft |
| 2. Transmission Control Module (TCM) | 6. Cover |
| 3. Plug, oil filling | 7. Control system with solenoids for controlling the gears |
| 4. Cable harness | 8. Oil cooler |

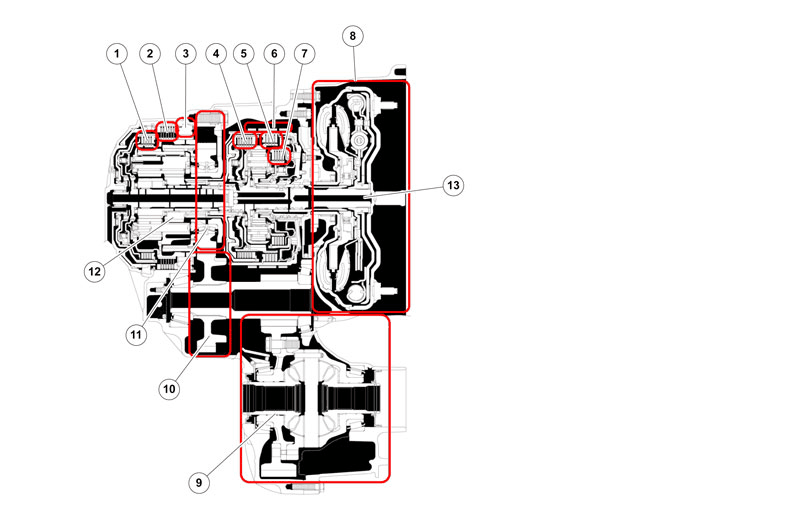

| 1. Clutch C2 | 8. Torque converter |
| 2. Brake B2 | 9. Differential unit |
| 3. Freewheel F1 | 10. Driven counter rotating gear |
| 4. Clutch C1 | 11. Driven gear |
| 5. Clutch C3 | 12. Rear planetary train, Ravigneaux |
| 6. Brake B1 | 13. Input shaft |
| 7. Clutch C4 |
