Engine Control Module (ECM) [2018-2022, B4204T28]: Removal

Set the vehicle to Inactive mode, described in user mode. Refer to: [USAGE MODE]

Remove the left front wheel. Refer to: [WHEELS]

Courtesy of VOLVO CARS CORPORATION

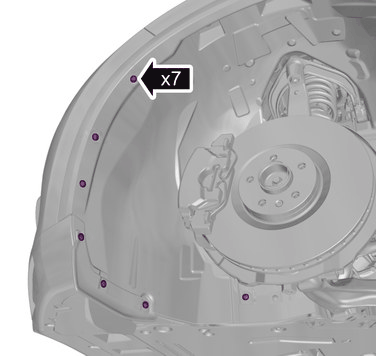

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

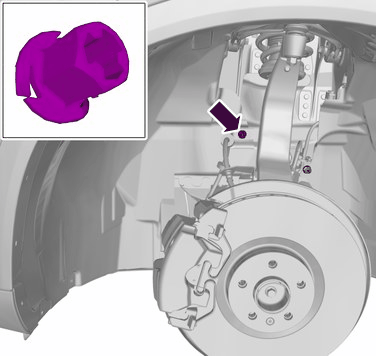

Remove the nut.

Courtesy of VOLVO CARS CORPORATION

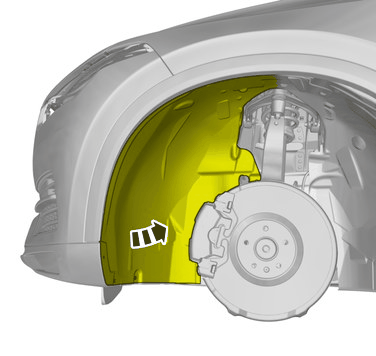

Fold the wing liner aside.

Courtesy of VOLVO CARS CORPORATION

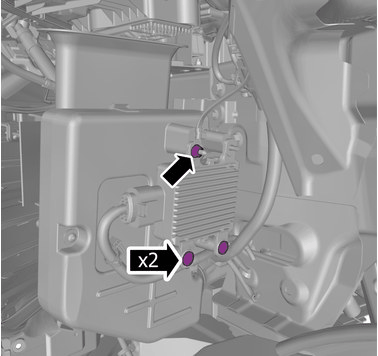

Remove the nut.

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

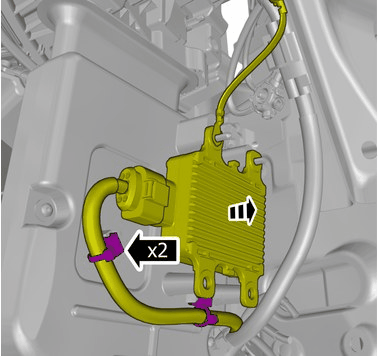

Fold marked part aside.

Loosen the clips.

Courtesy of VOLVO CARS CORPORATION

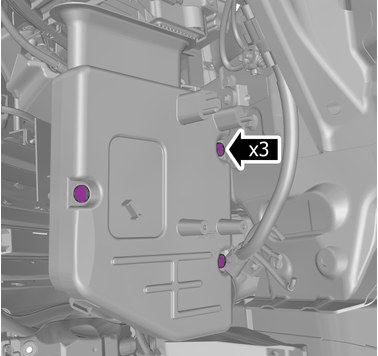

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

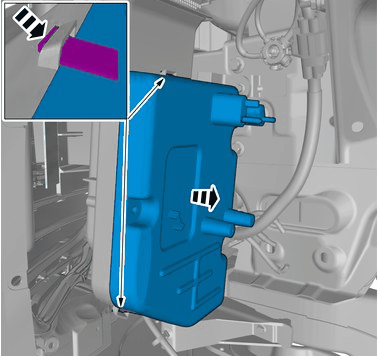

Loosen the clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

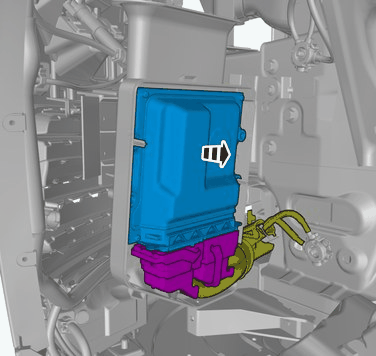

Disconnect the connectors.
