Engine Control Module (ECM) [2019-2022, B4204T23]: Removal

Set the vehicle to Inactive mode, described in user mode. Refer to: [USAGE MODE]

Remove the left front wheel. Refer to: [WHEELS]

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Remove the nut.

Courtesy of VOLVO CARS CORPORATION

Fold the wing liner aside.

Courtesy of VOLVO CARS CORPORATION

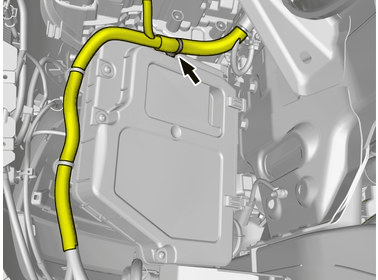

Remove the cable harness clips.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

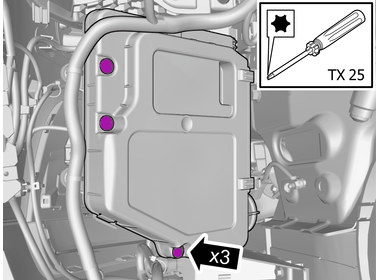

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

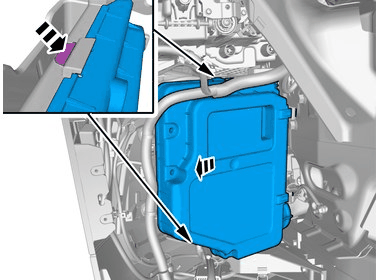

Release the catches.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

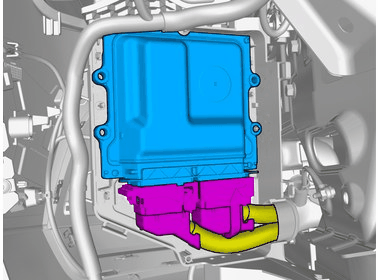

Disconnect the connectors.

Remove the marked part.
