Fire Extinguisher, Installation [2021-2022, E400V6]: Installation
 Courtesy of VOLVO CARS CORPORATION
|

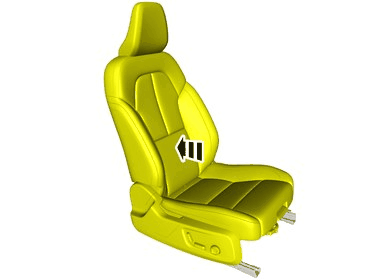

Adjust the seat to the rear position.
 Courtesy of VOLVO CARS CORPORATION
|

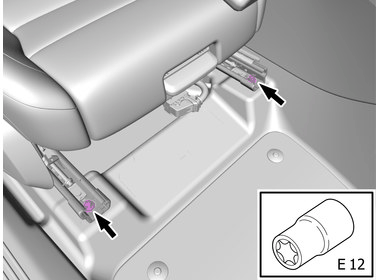

Remove the screws.
 Courtesy of VOLVO CARS CORPORATION
|

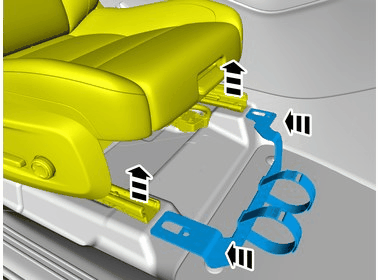

Install the marked component.
 Courtesy of VOLVO CARS CORPORATION
|

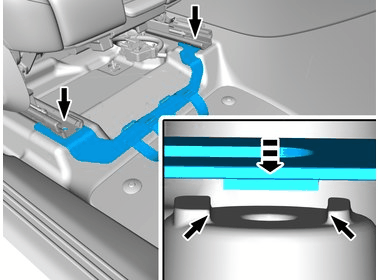

Note the position.
 Courtesy of VOLVO CARS CORPORATION
|

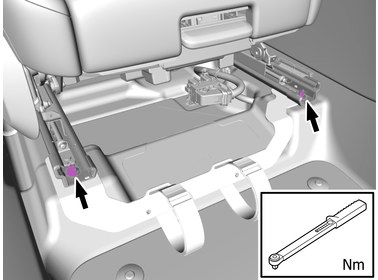

Install the screws.
Torque:
Front seat to body, 40Nm
 Courtesy of VOLVO CARS CORPORATION
|

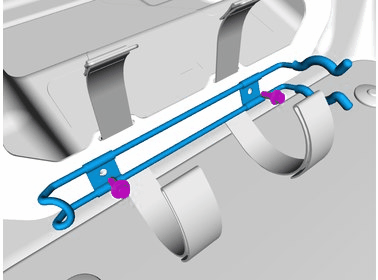

Install the marked component.
Install the screws.
Torque:
M6, 10Nm
 Courtesy of VOLVO CARS CORPORATION
|

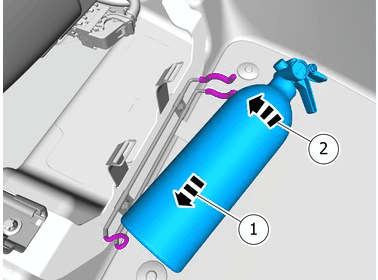

Install the marked component.
 Courtesy of VOLVO CARS CORPORATION
|

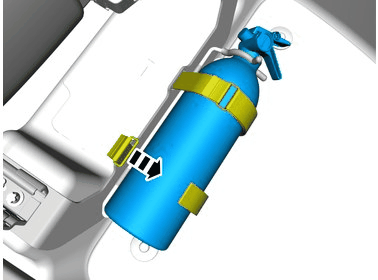

Attach the component with the belts.
