Removal And Installation

REMOVAL

Remove the air filter housing. Refer to: AIR CLEANER HOUSING

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

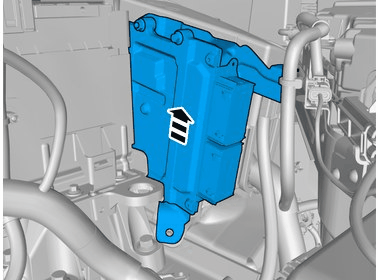

Pull the component in direction of the arrow.

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

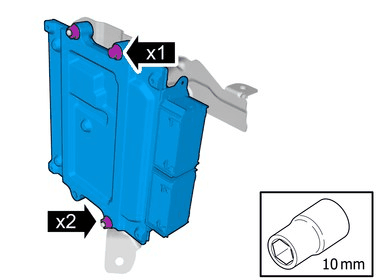

Remove the screw.

Remove the nuts.

Remove the marked part.

Torque: M6, 10Nm

INSTALLATION

To install, reverse the removal procedure.

NOTE:

This step is only necessary when installing a new component.

Order and download the appropriate software according to: VIDA/Software/Hardware Changes
