Component Location

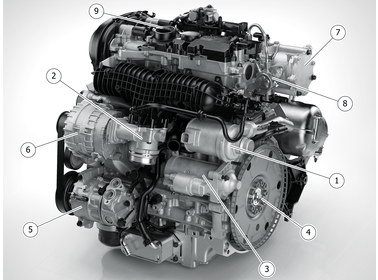

Side view (inlet side)

GLL1031409Courtesy of VOLVO CARS CORPORATION
  1. Electric coolant pump
  2. throttle
  3. Starter motor
  4. Crankshaft gear wheel
  5. air conditioning (A/C) compressor.
  6. Alternator
  7. Vacuum pump
  8. Fuel pump
  9. Oil filling point

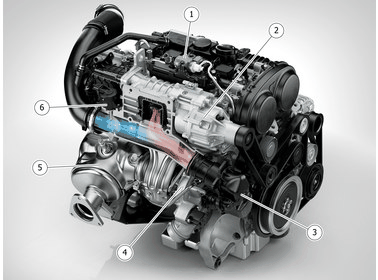

Side view (exhaust side)

GLL1021145Courtesy of VOLVO CARS CORPORATION
  1. Vacuum regulator
  2. Compressor
  3. Resonator
  4. Turbocharger
  5. Catalytic converter
  6. By-pass actuator
