Thermostatic Air Control System: Description

The purpose of thermostatically controlled air intake system is to provide engine with pre-heated air to prevent carburetor icing and to provide improved fuel vaporization for better combustion.

NOTE: Information for GVX 1.3L engine not available.

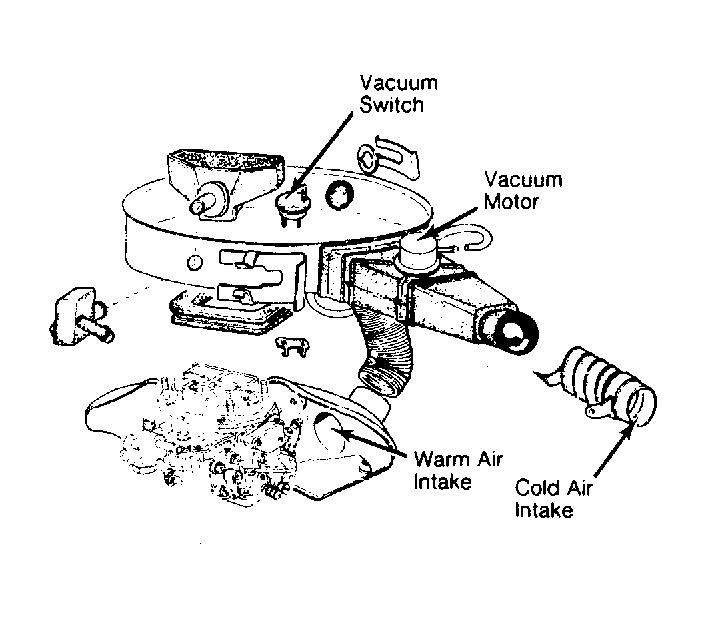

Fig 1: Thermostatic Air Cleaner Components
G67665Courtesy of YUGO AMERICA, INC.
