Motor Controller: Notes

The controller controls the vehicle's electric motor according to exterior input, such as the accelerator or brakes.

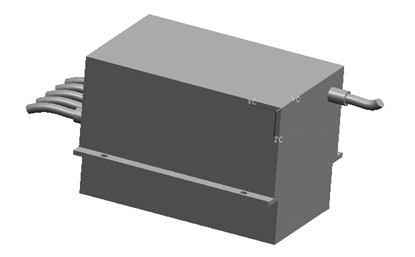

Fig 1: Identifying Motor Controller
G00499350Courtesy of LIUZHOU WULING MOTORS CO., LTD.

Attention: Under certain conditions such as overload, and under-voltage, etc.), controller may temporarily shut down. Turn off the ignition switch, wait 10 seconds and restart the vehicle. The failure will automatically disappear.
