Exploded View Of Steering Gear

Fig 1: Exploded View Of Steering Gear
G00498381Courtesy of LIUZHOU WULING SPECIAL PURPOSE VEHICLE MANUFACTURING CO. ,LTD
  1. Install the steering gear into the jaw vice.

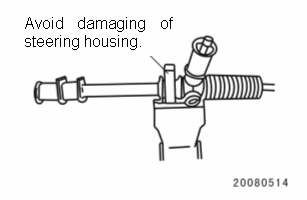

    2. Fig 2: Steering Gear Secured In Vice
    G00498402Courtesy of LIUZHOU WULING SPECIAL PURPOSE VEHICLE MANUFACTURING CO. ,LTD
  2. Alignment mark on the joint ends of tie rod and steering.

    3. Attention:  Distinguish between the left and right end.

    Fig 3: Identifying Tie Rod End Alignment Mark
    G00498382Courtesy of LIUZHOU WULING SPECIAL PURPOSE VEHICLE MANUFACTURING CO. ,LTD
  3. Remove the rubber bushing.
  4. Disassemble the outer tie rod end assembly.
  5. Disassemble the spring clamp.
  6. Disassemble clamp.
  7. Remove expansion rubber sleeve (bellows boot).
  8. Disassemble the tie rod ball joint assembly.

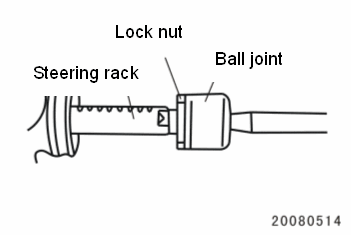

    9. Fig 4: Identifying Tie Rod Ball Joint Assembly
    G00498383Courtesy of LIUZHOU WULING SPECIAL PURPOSE VEHICLE MANUFACTURING CO. ,LTD
  9. Use the jaw vice to take off lock nut of the tie rod ball joint assembly.

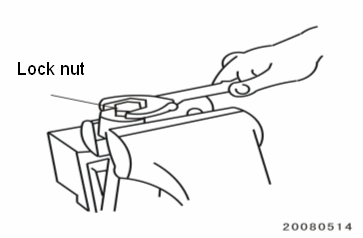

    10. Fig 5: Removing Lock Nut
    G00498384Courtesy of LIUZHOU WULING SPECIAL PURPOSE VEHICLE MANUFACTURING CO. ,LTD
  10. Adjust the plug lock nut
  11. Unscrew the adjustable plug.
    1. Unscrew adjustable plug.
    2. Take off adjustable spring and block.

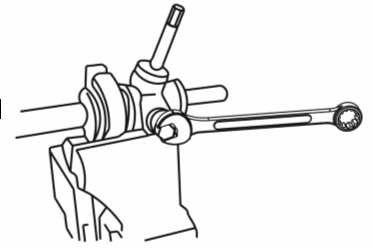

    12. Fig 6: Identifying Adjustable Plug
    G00498385Courtesy of LIUZHOU WULING SPECIAL PURPOSE VEHICLE MANUFACTURING CO. ,LTD
  12. Take off steering rack.

    13. Attention:

    • Pull the rack out of housing from side as shown in the figure to avoid damaging rack guide bushing.
    • Do not rotate the rack and keep it flat and straight when pulling it out.

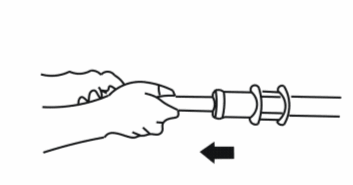

    Fig 7: Pulling Out Steering Rack
    G00498401Courtesy of LIUZHOU WULING SPECIAL PURPOSE VEHICLE MANUFACTURING CO. ,LTD
  13. Take off oil seal with a screwdriver.

    14. Attention:  Be careful not to damage steering housing during removal. Do not reuse the dismantled oil seal.

    Fig 8: Removing Oil Seal
    G00498386Courtesy of LIUZHOU WULING SPECIAL PURPOSE VEHICLE MANUFACTURING CO. ,LTD
  14. Remove retainer ring with snap ring pliers.

    15. Attention:  Do not reuse the removed retainer ring.

  15. Disassemble steering rack and bearing.

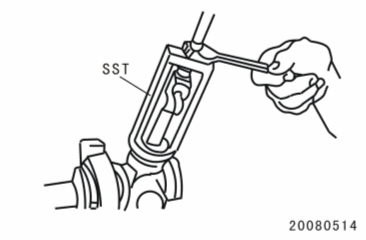

    16. Fig 9: Removing Steering Rack & Bearing
    G00498387Courtesy of LIUZHOU WULING SPECIAL PURPOSE VEHICLE MANUFACTURING CO. ,LTD
  16. Remove bearing retainer ring with circlip pliers.

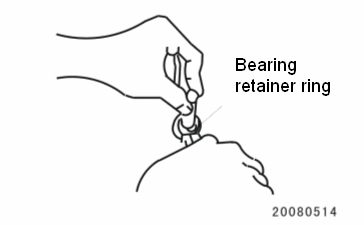

    17. Fig 10: Removing Bearing Retainer Ring
    G00498388Courtesy of LIUZHOU WULING SPECIAL PURPOSE VEHICLE MANUFACTURING CO. ,LTD

    Attention:  Do not reuse the removed retainer ring.

  17. Disassemble ball bearings with a puller.

    18. Attention:  Do not reuse the removed ball bearing.

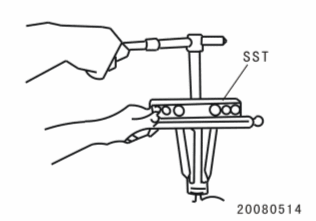

    Fig 11: Removing Ball Bearings
    G00498389Courtesy of LIUZHOU WULING SPECIAL PURPOSE VEHICLE MANUFACTURING CO. ,LTD
