Installation of steering wheel assembly

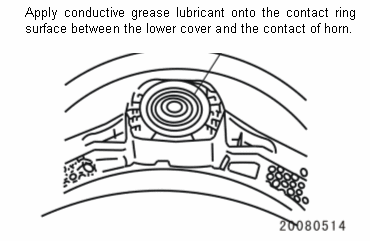

- Apply conductive grease lubricant onto the contact ring surface between the steering wheel assembly and combination switch.
- When installing the steering wheel, the concave hole on the bottom should align
with the dummy club of the steering switch. The tightening torque of clamp nut shall be 29-39 Nm.
Attention: Before mounting steering wheel onto steering column, keep the steering wheel in a "driving straight forward" position.
- Install horn button and steering wheel upper cover
