Electric Motor and Transmission Assembly

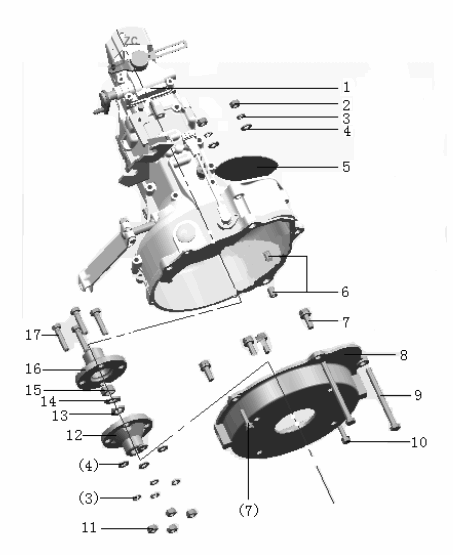

All parts and tightening torque in the figure:
| Number | Description | Specifications |
|---|---|---|
| 1 | Transmission assembly | - |
| 2 | Nut M101.25 | 45~65 |
| 3 | Washer 10 | - |
| 4 | Washer 10 | - |
| 5 | Motor baffle plate | - |
| 6 | Dowel pin of cylinder head | - |
| 7 | Bolt assembly M101.2530 | 45~65 |
| 8 | Connecting plate | - |
| 9 | Bolt M101.25120 | 45~65 |
| 10 | Bolt assembly M10X1.2545 | 45~65 |
| 11 | Locknut M101.25 | 45~65 |
| 12 | Coupling plate | - |
| 13 | Washer 16 | - |
| 14 | Washer 16 | - |
| 15 | Hex nut M16X1.5 | 120~140 |
