Code 1, Oxygen Sensor

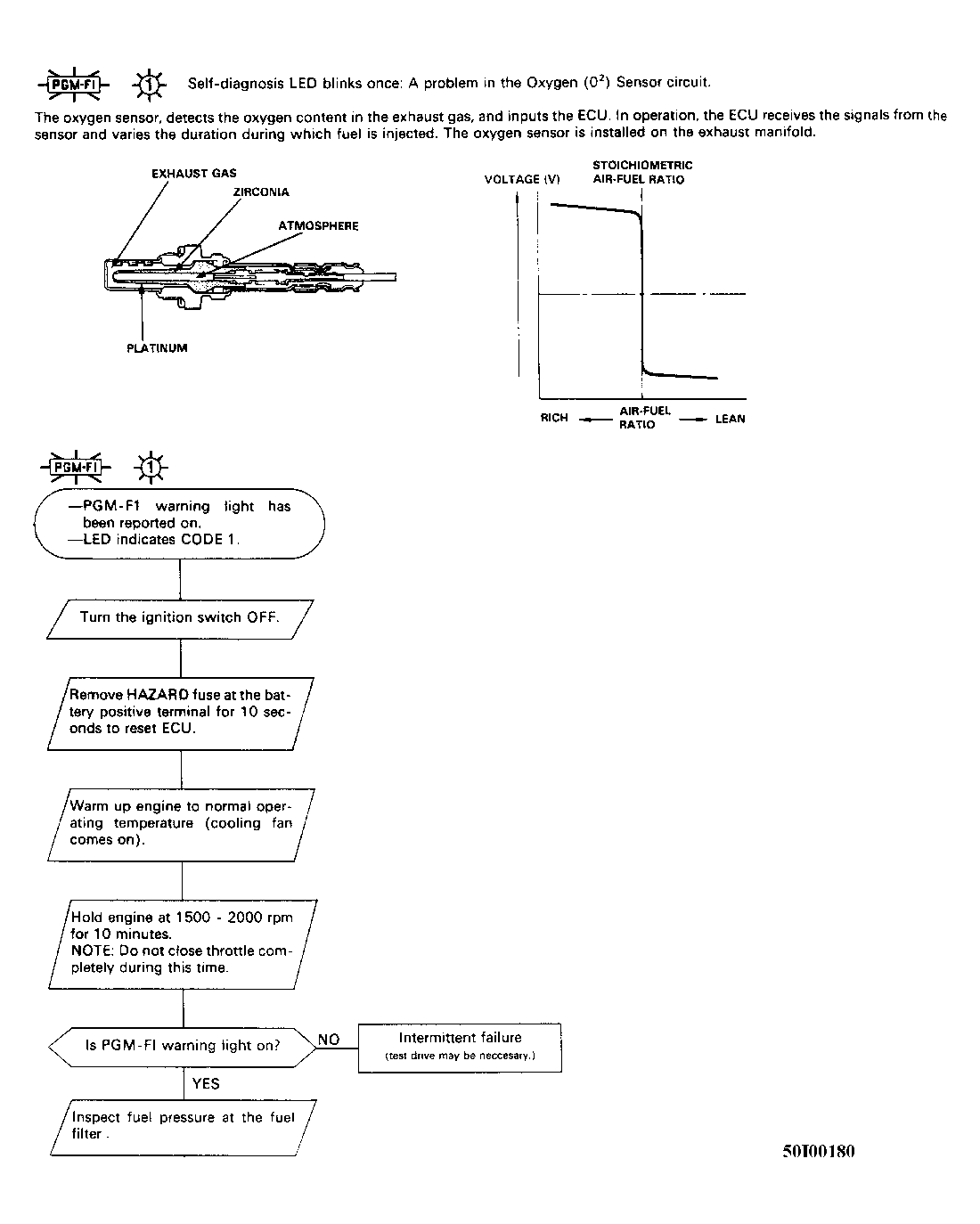

Fig 1: Code 1, Oxygen Sensor, Flow Chart (1 of 2)

G50I00180

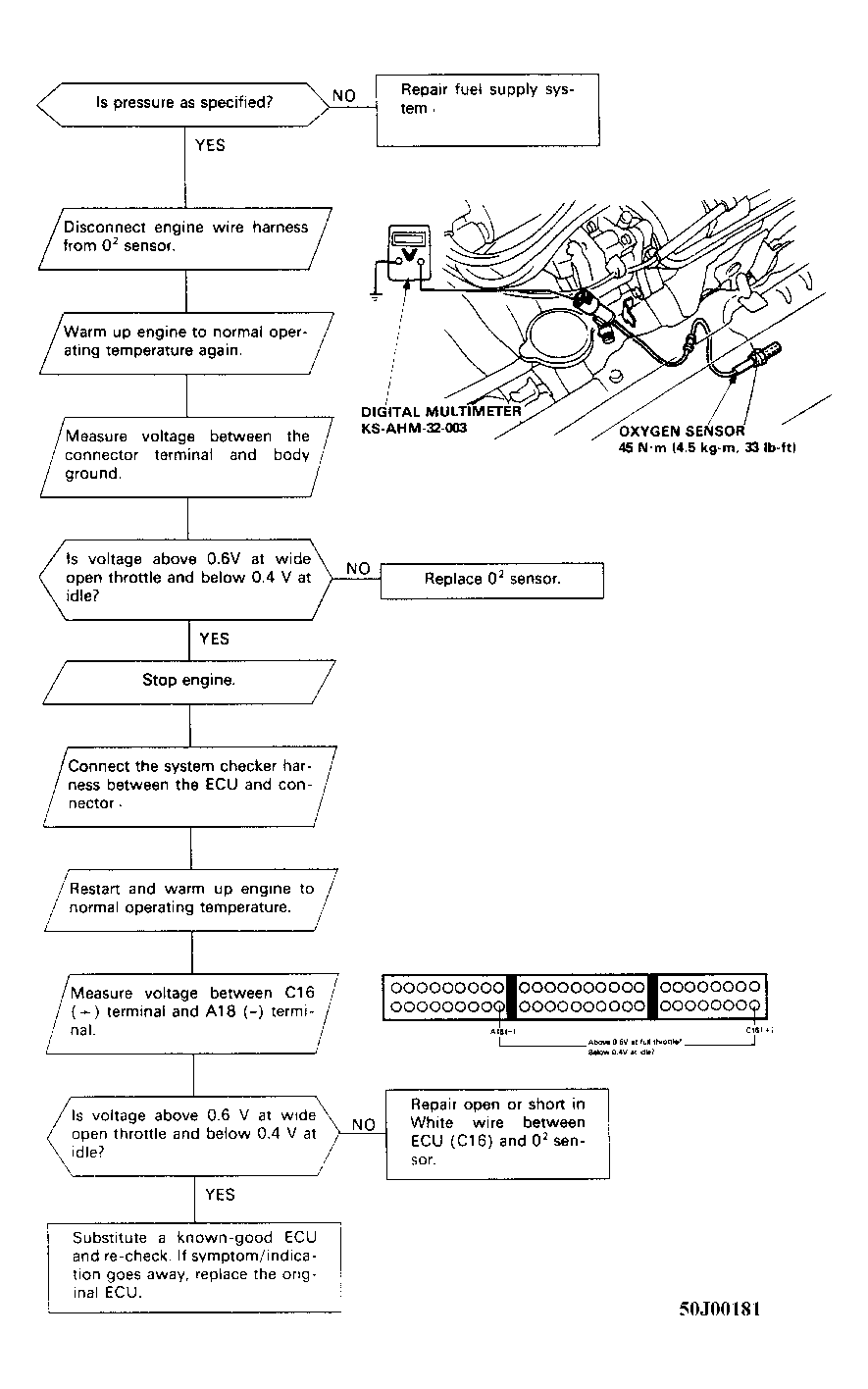

Fig 2: Codes 1, Oxygen Sensor, Flow Chart (2 of 2)

G50J00181
