Alternator & Regulator: Description

Nippondenso 3-phase alternators use 4 positive and 4 negative diodes to rectify current. An internal Integrated Circuit (IC) voltage regulator controls charging system voltage. See Fig 1-3 .

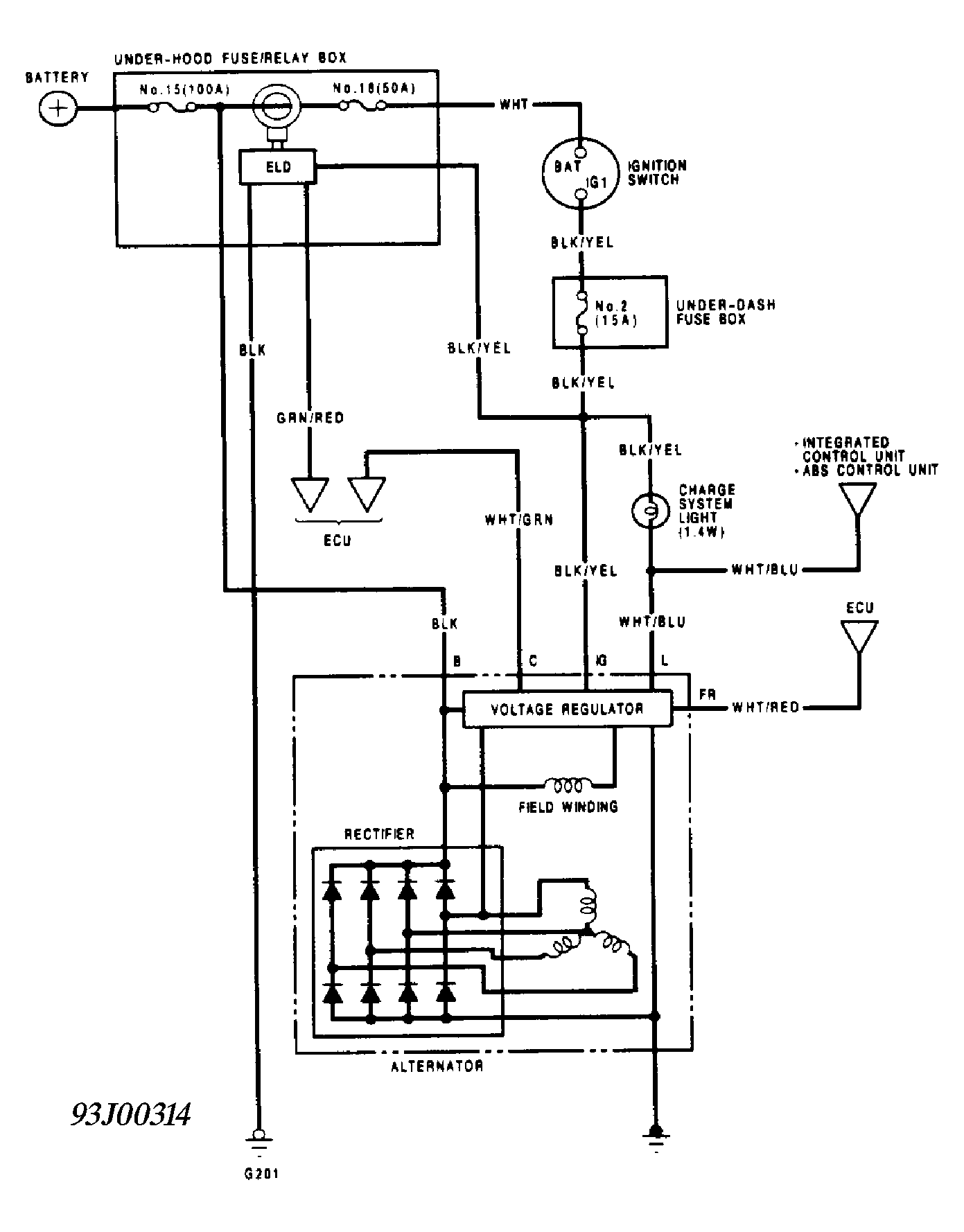

Fig 1: Charging System Wiring Schematic (Integra)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

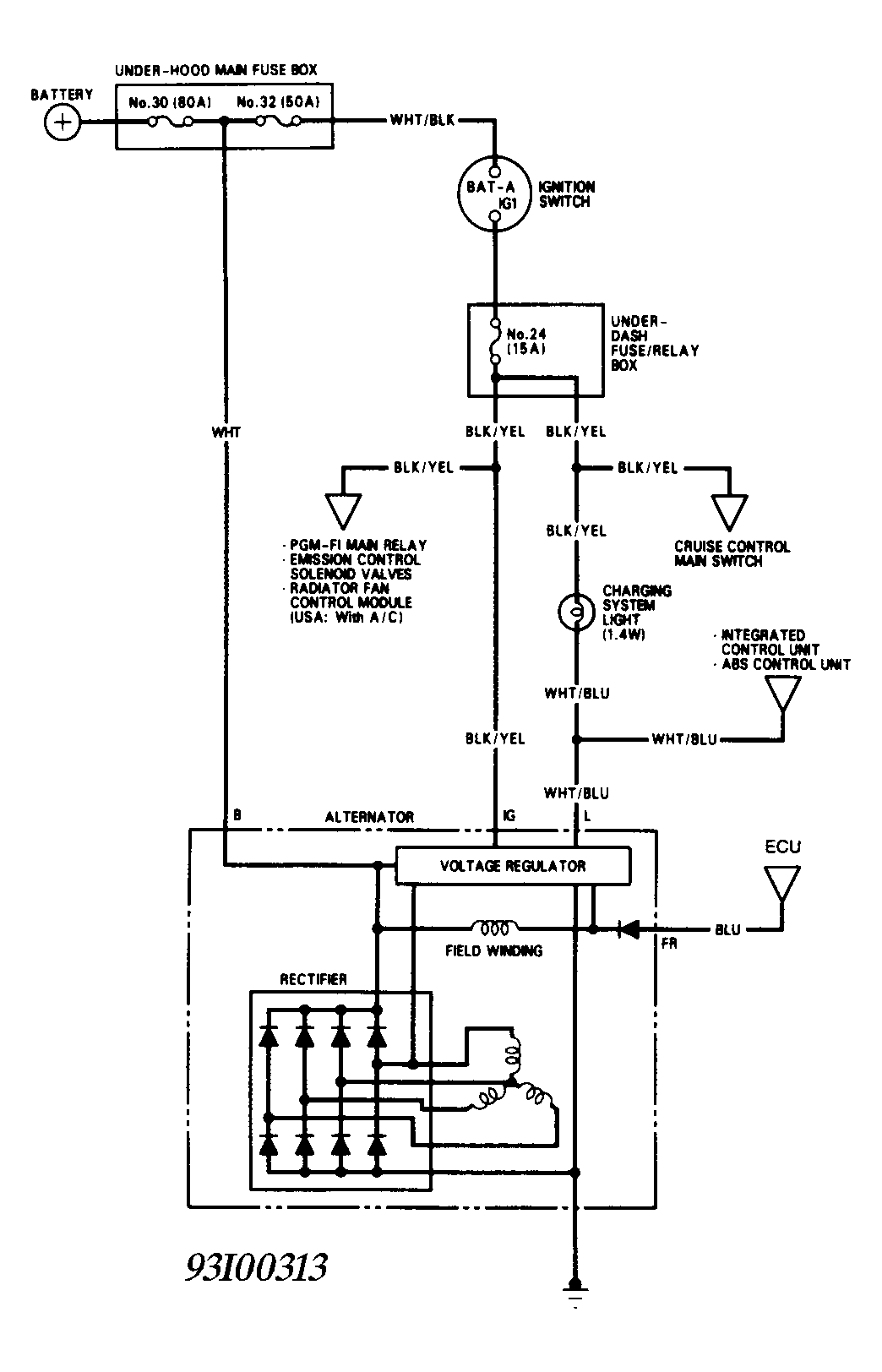

Fig 2: Charging System Wiring Schematic (Legend)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

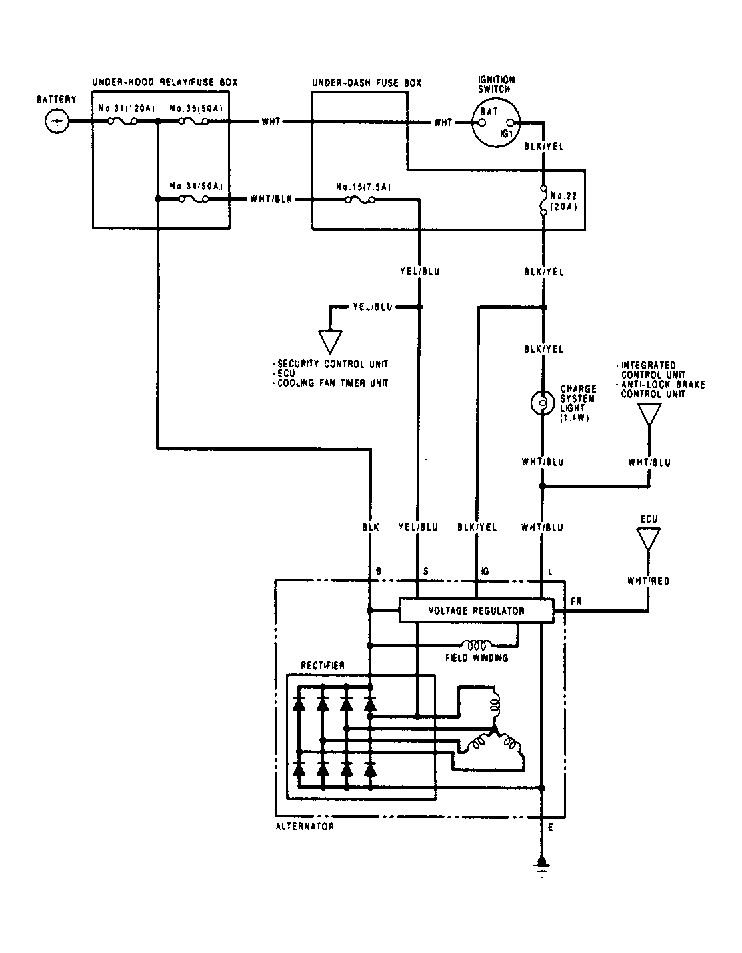

Fig 3: Charging System Wiring Schematic (Vigor)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
