Check Engine Light Stays On After 2 Seconds

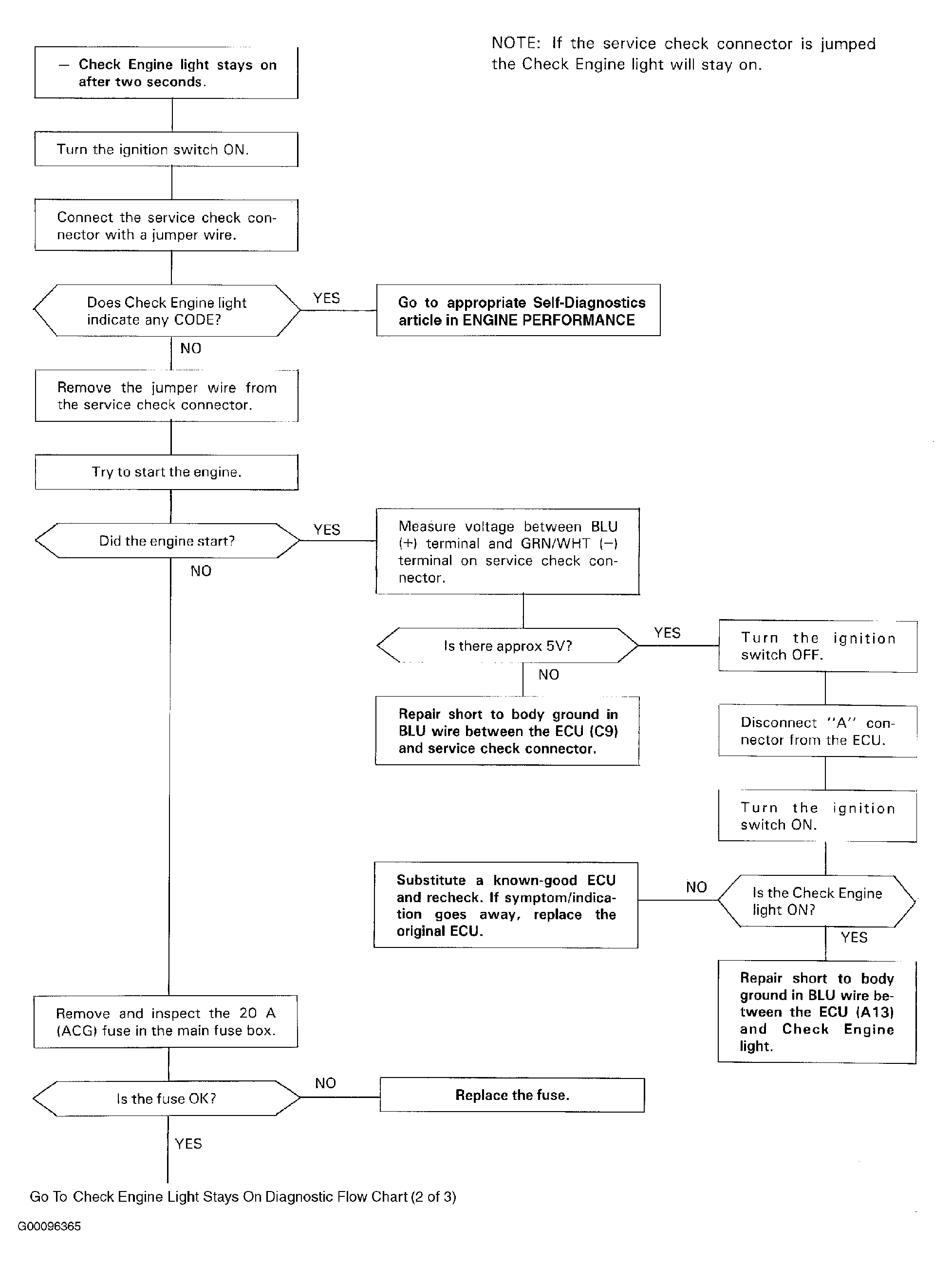

Fig 1: Check Engine Light Stays On Diagnostic Flow Chart (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

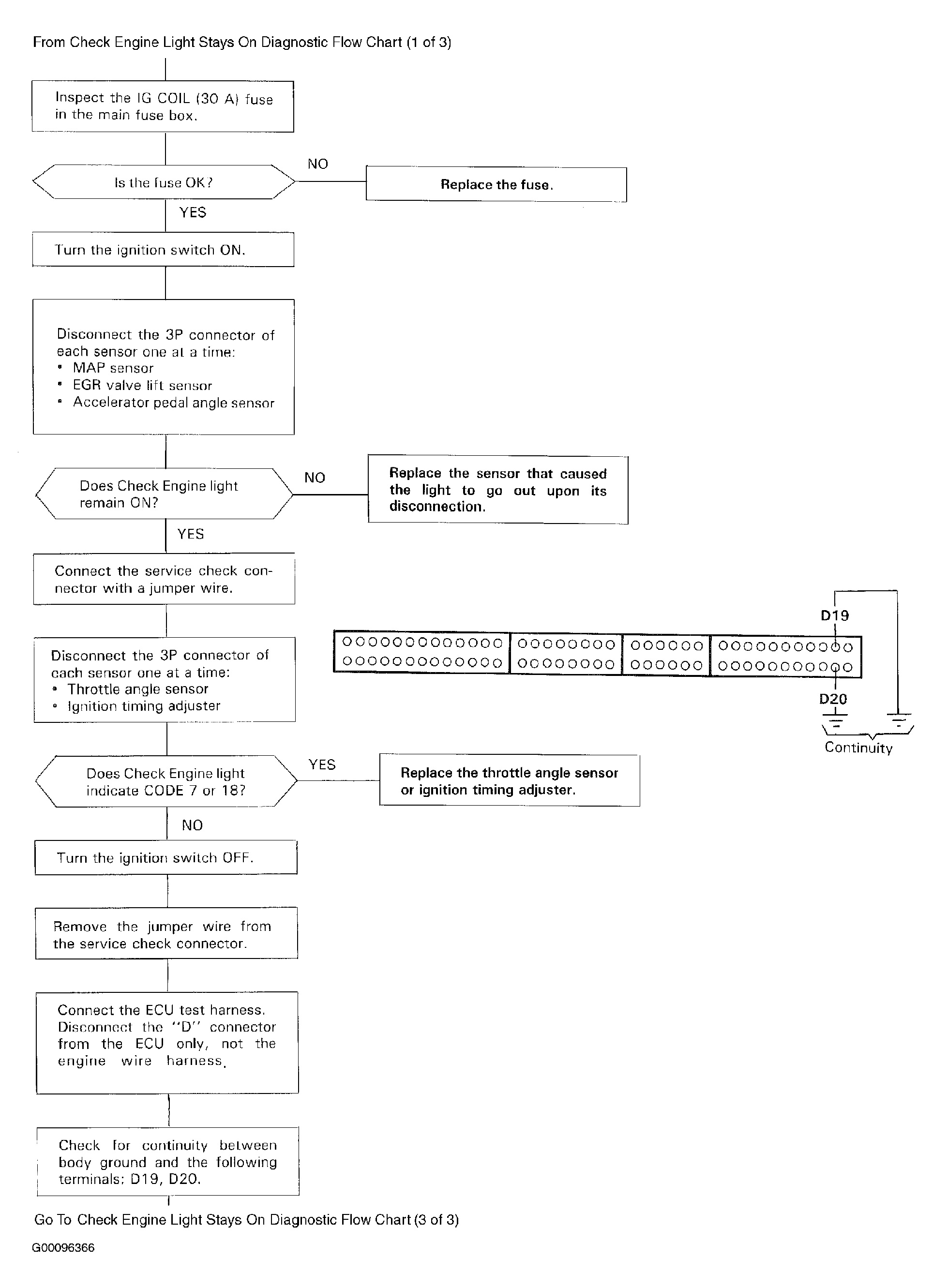

Fig 2: Check Engine Light Stays On Diagnostic Flow Chart (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

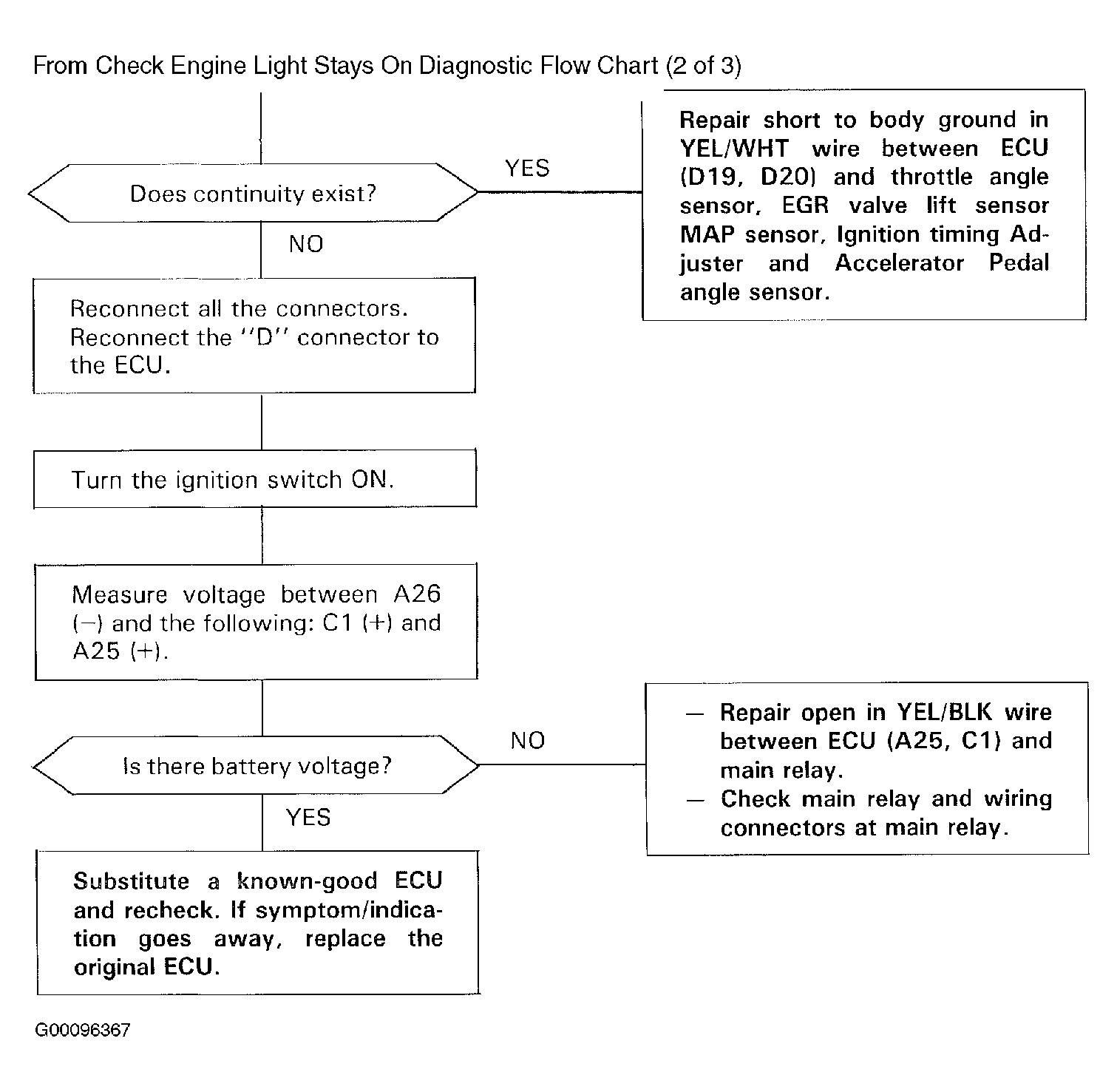

Fig 3: Check Engine Light Stays On Diagnostic Flow Chart (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
