Component Locations

For component locations, refer to illustrations. See Fig 1 - Fig 4 .

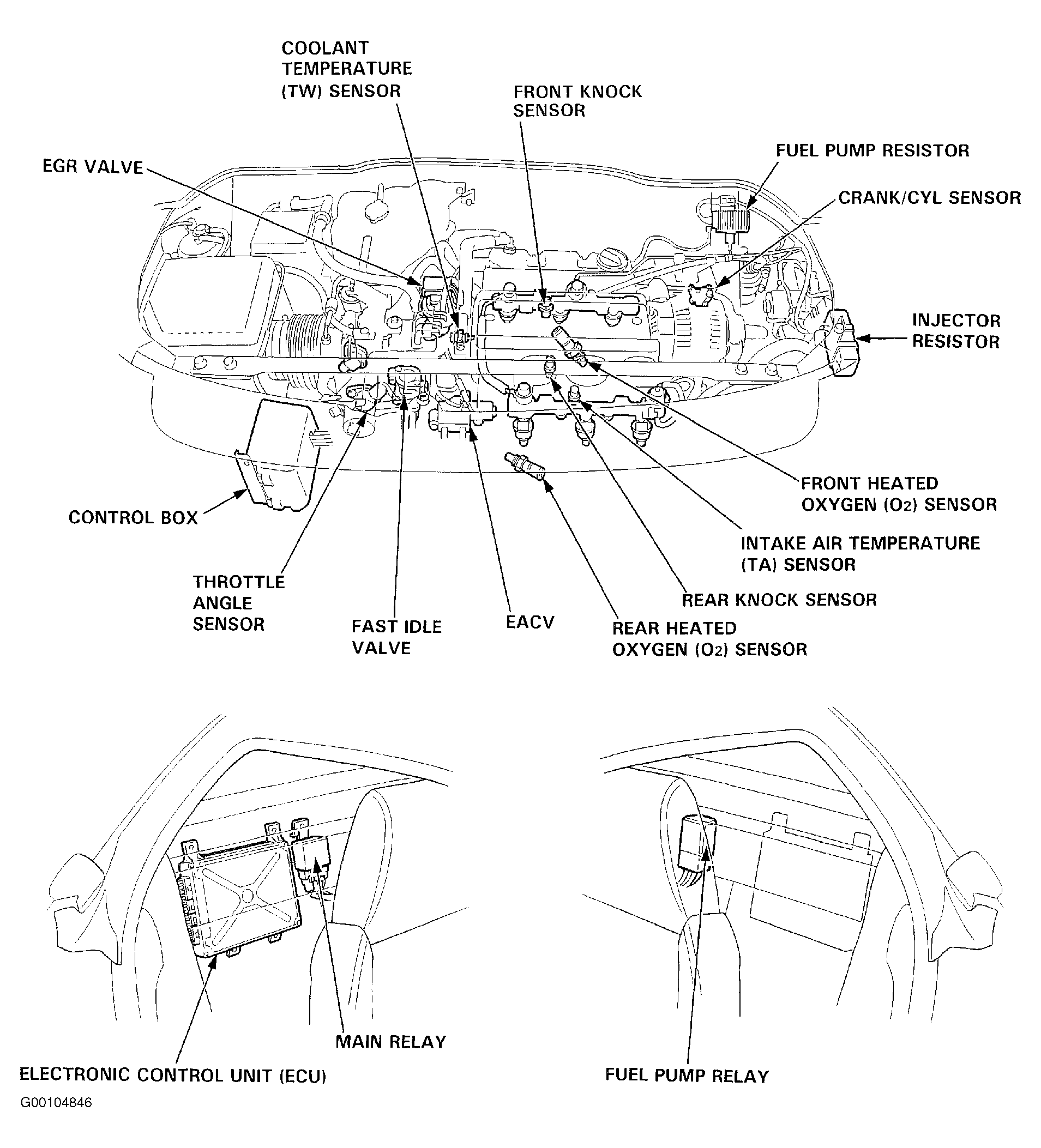

Fig 1: Locating Engine Performance Components (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

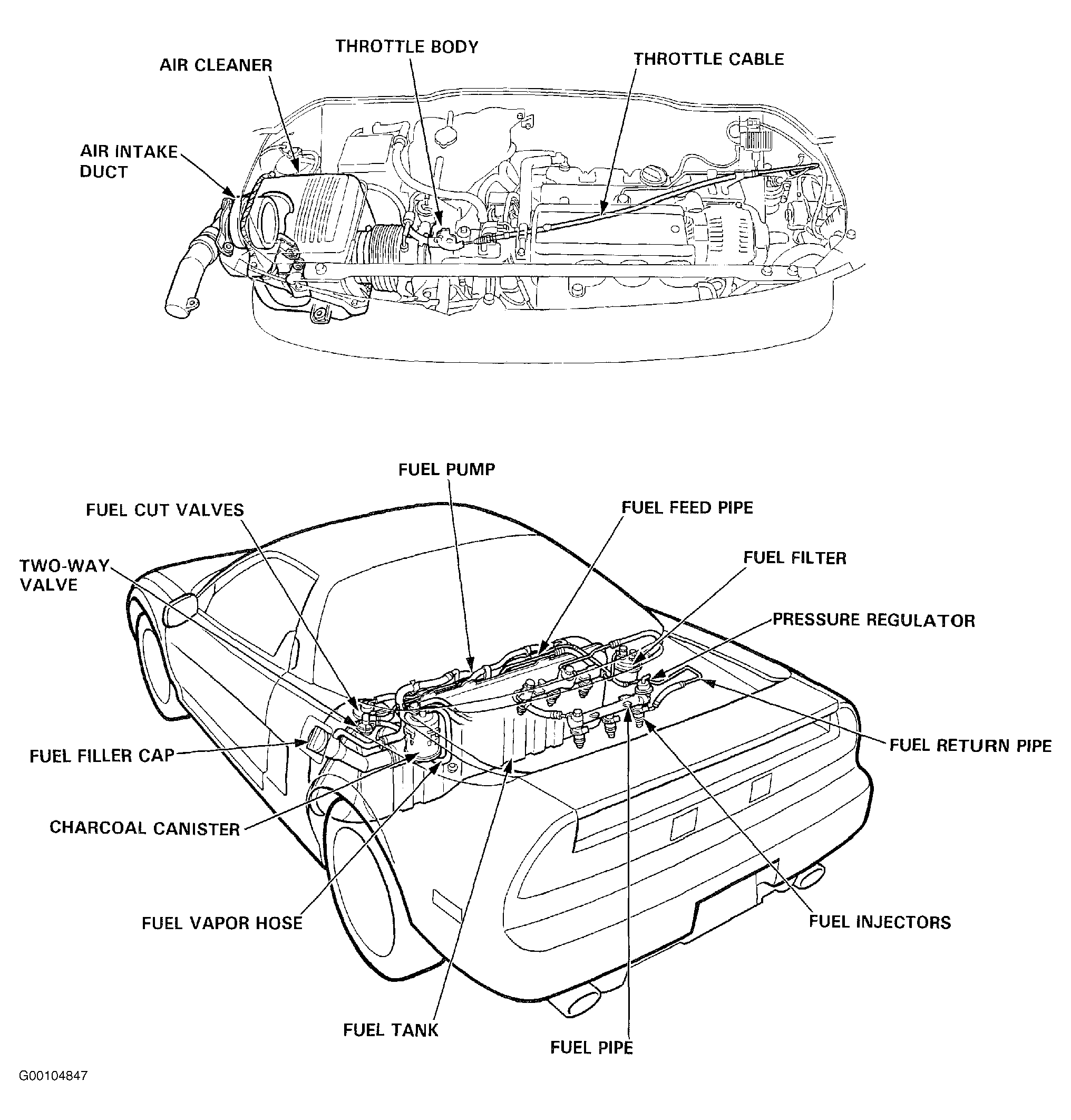

Fig 2: Locating Engine Performance Components (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

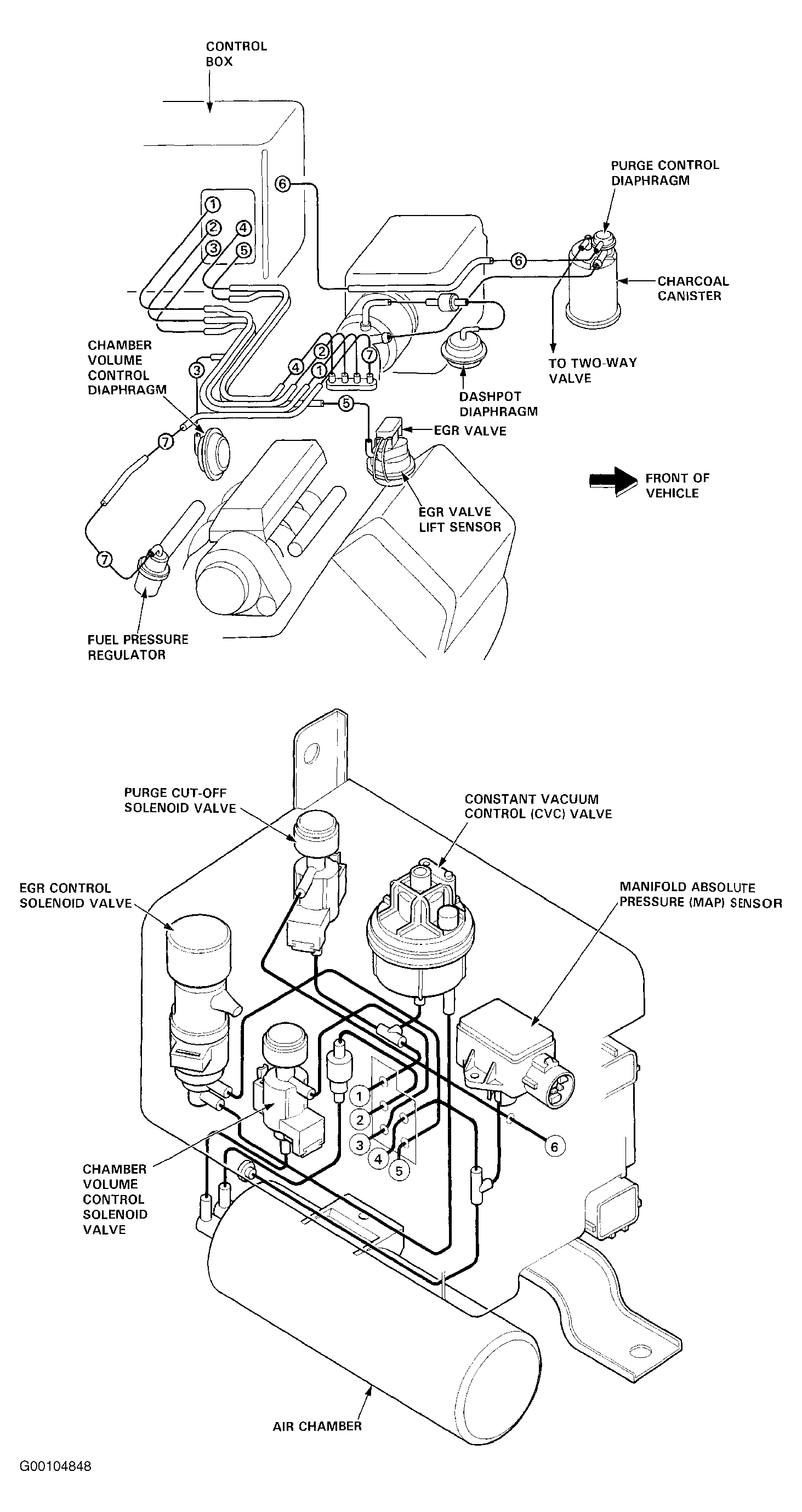

Fig 3: Locating Engine Performance Components (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

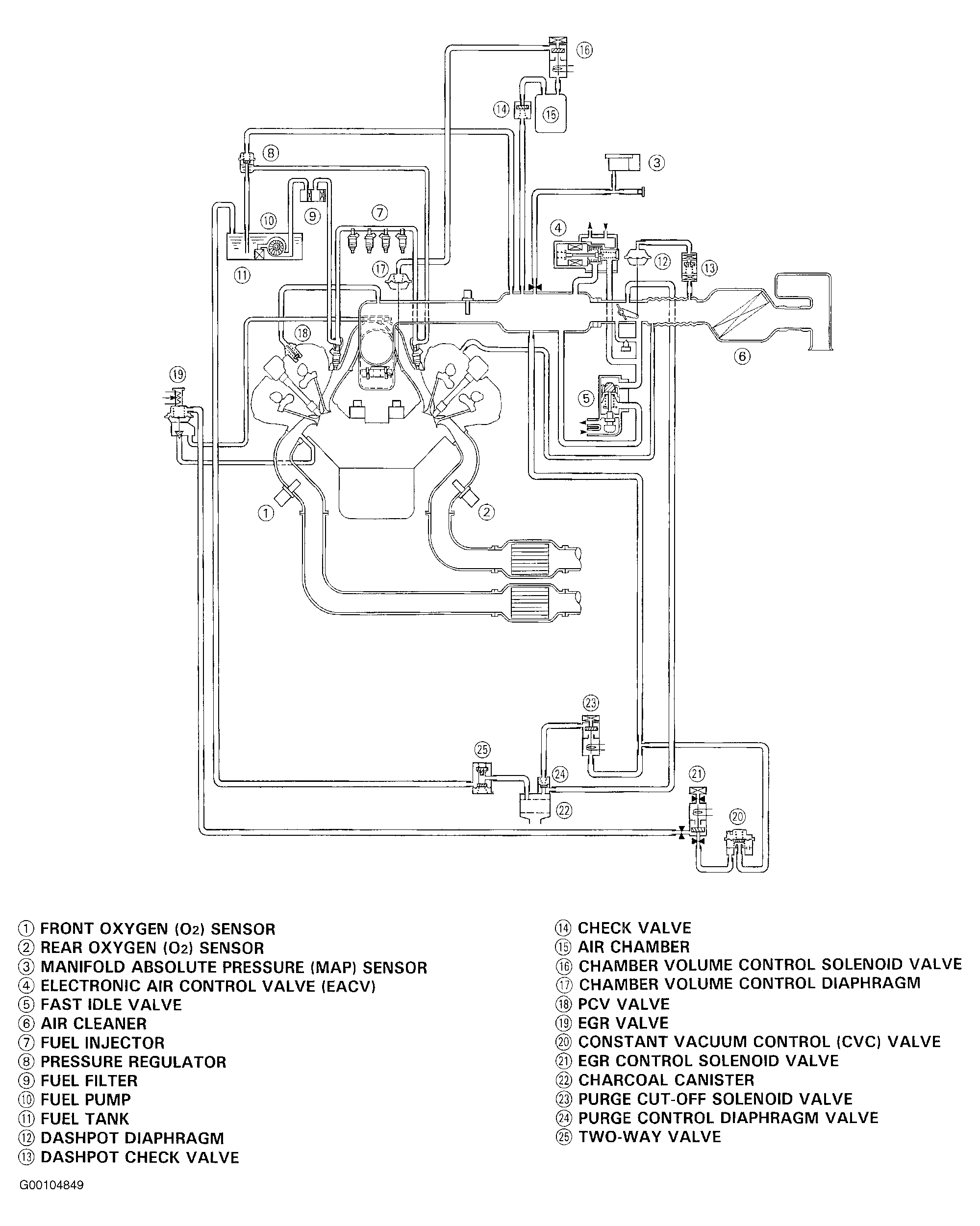

Fig 4: Locating Engine Performance Components (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
