Switch Test
For testing procedures, see
Fig 1
.

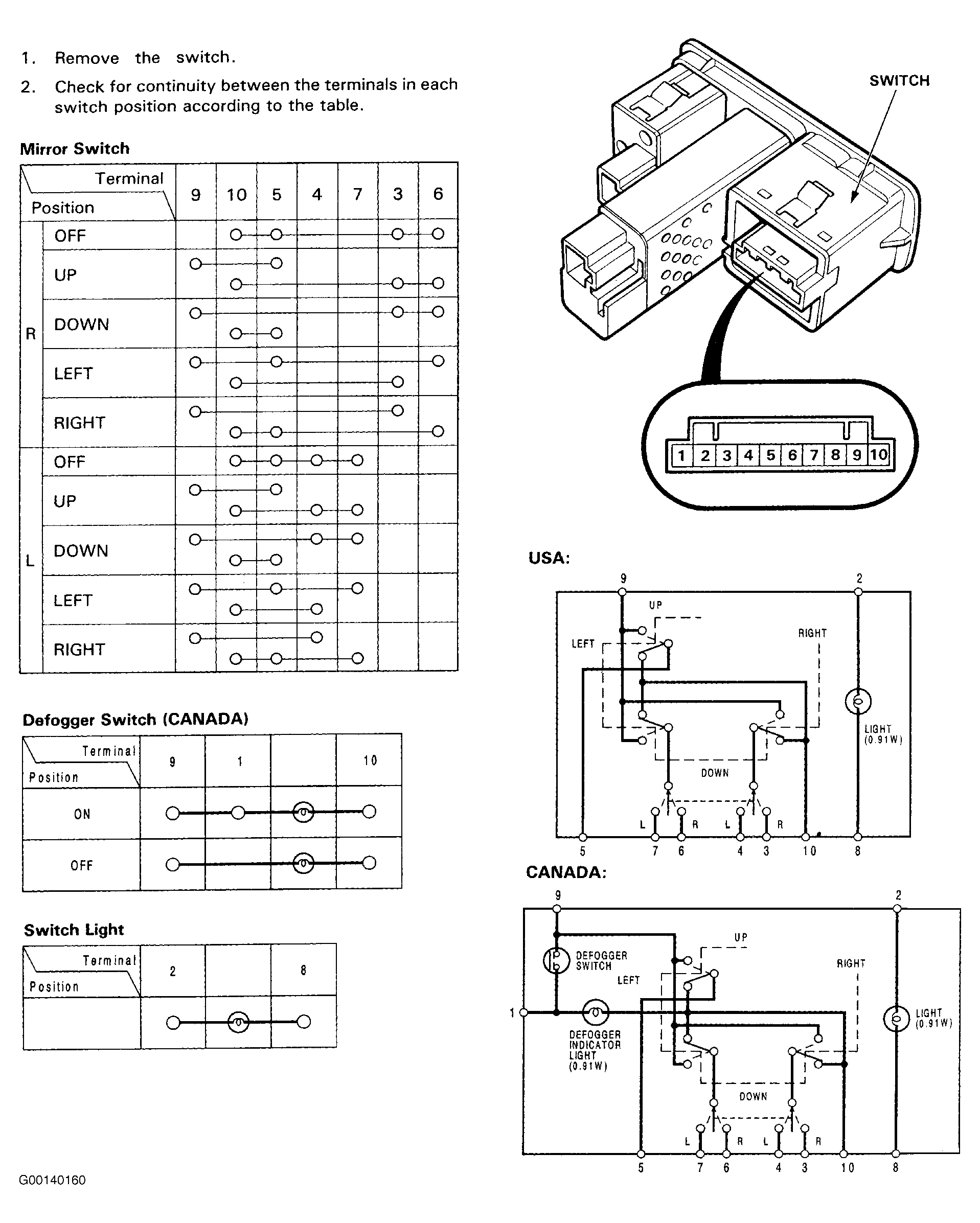

Fig 1: Switch Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
