Parking Brake Switch

  1. Remove the center console and disconnect the connector from the switch. See Fig 1 .
  2. There should be no continuity between the positive terminals and body ground with the brake lever up. There should be continuity with the brake lever down. Replace parking brake switch as necessary.

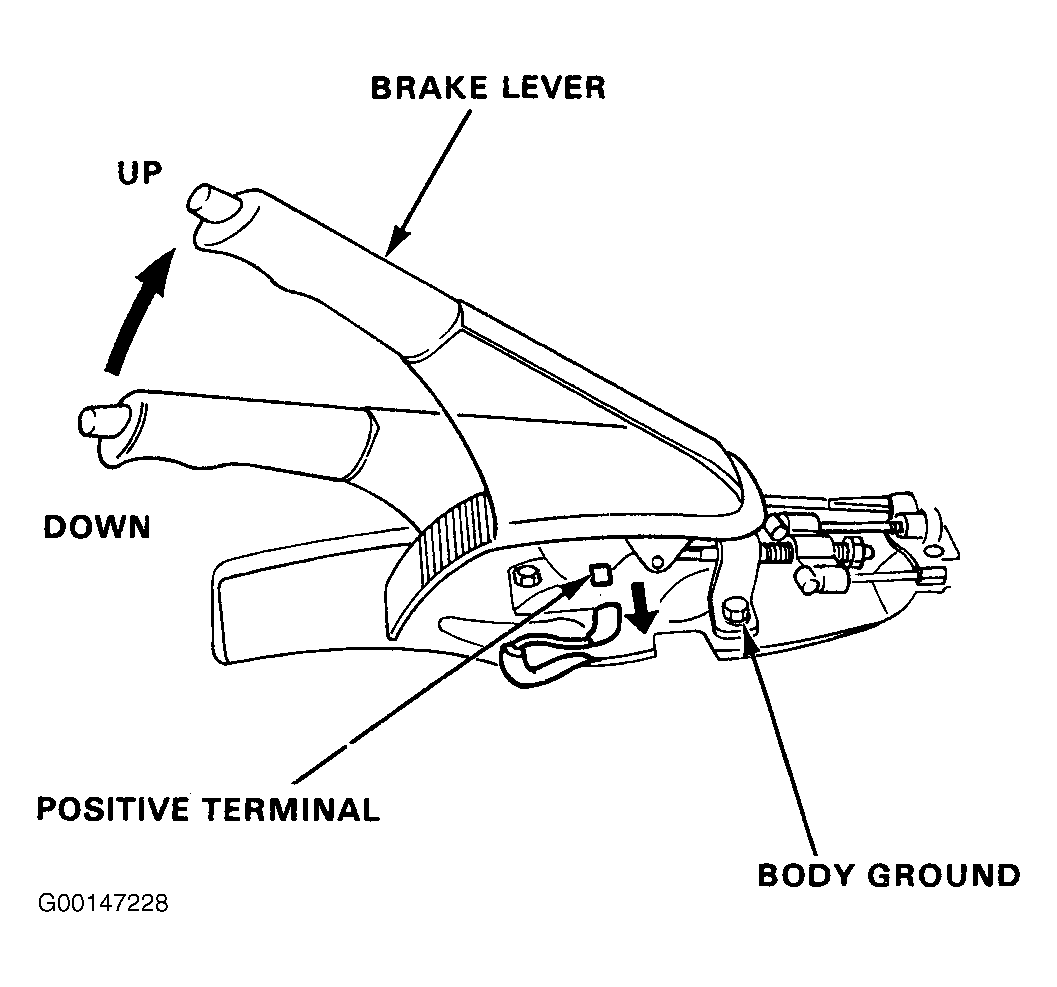

Fig 1: Locating Parking Brake Switch Positive Terminal
G00147228Courtesy of AMERICAN HONDA MOTOR CO., INC.
