Passenger Window Switch Test

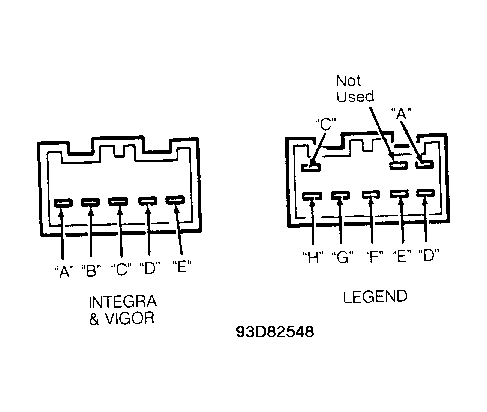

Unplug connector from switch. See WINDOW SWITCH under REMOVAL & INSTALLATION. Check for continuity between specified switch terminals with switch in each position. If continuity is not as specified, replace switch. See Fig 1 . See PASSENGER POWER WINDOW SWITCH TEST table.
PASSENGER POWER WINDOW SWITCH TEST
| Switch Position | Continuity |
|---|---|
| Off | "A"-"G"; "D"-"E"; "A"-"F" |
| Up | "D"-"E"; "C"-"G" |
| Down | "C"-"D"; "G"-"H" |
