Connector/Circuit ID

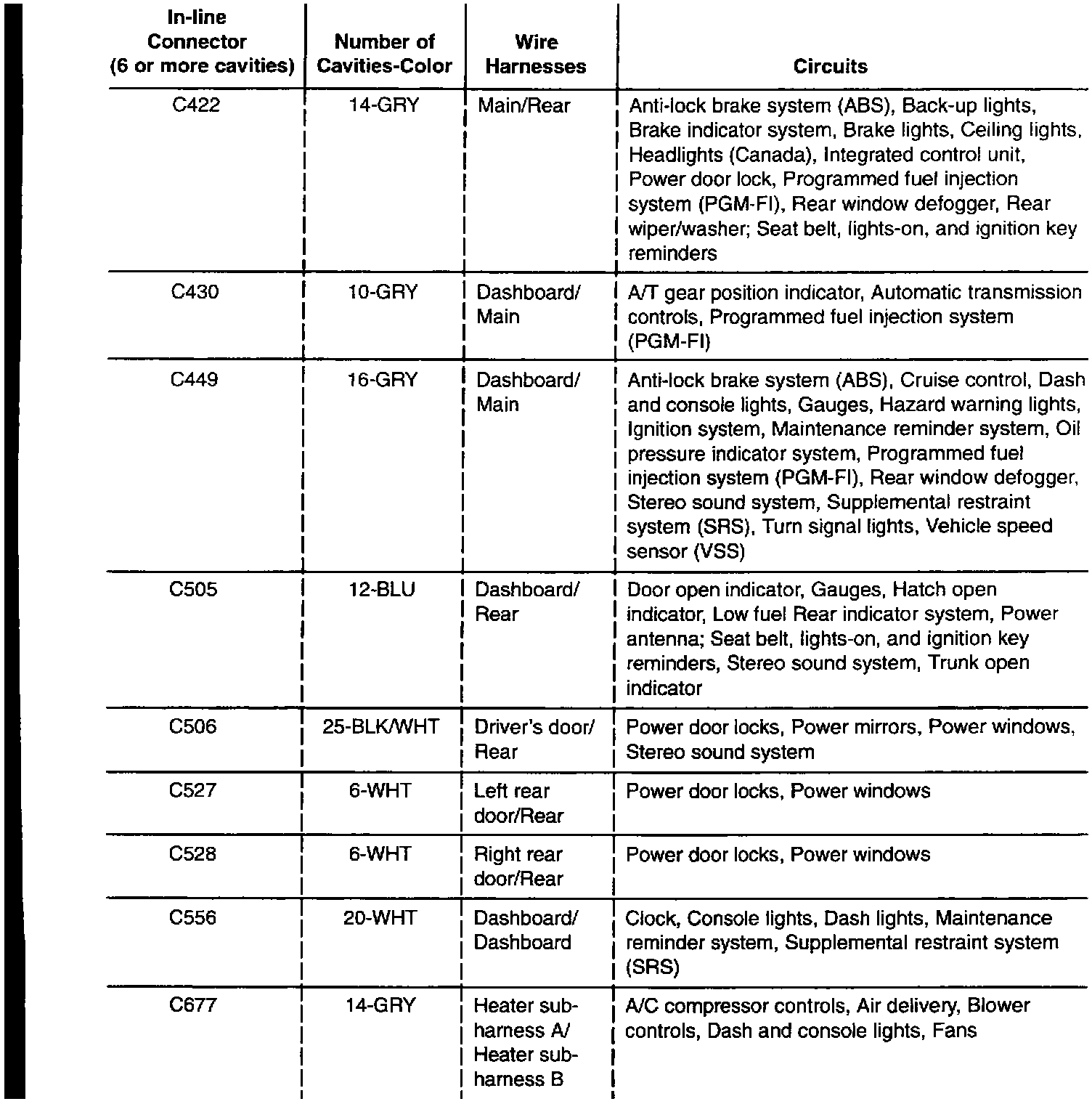

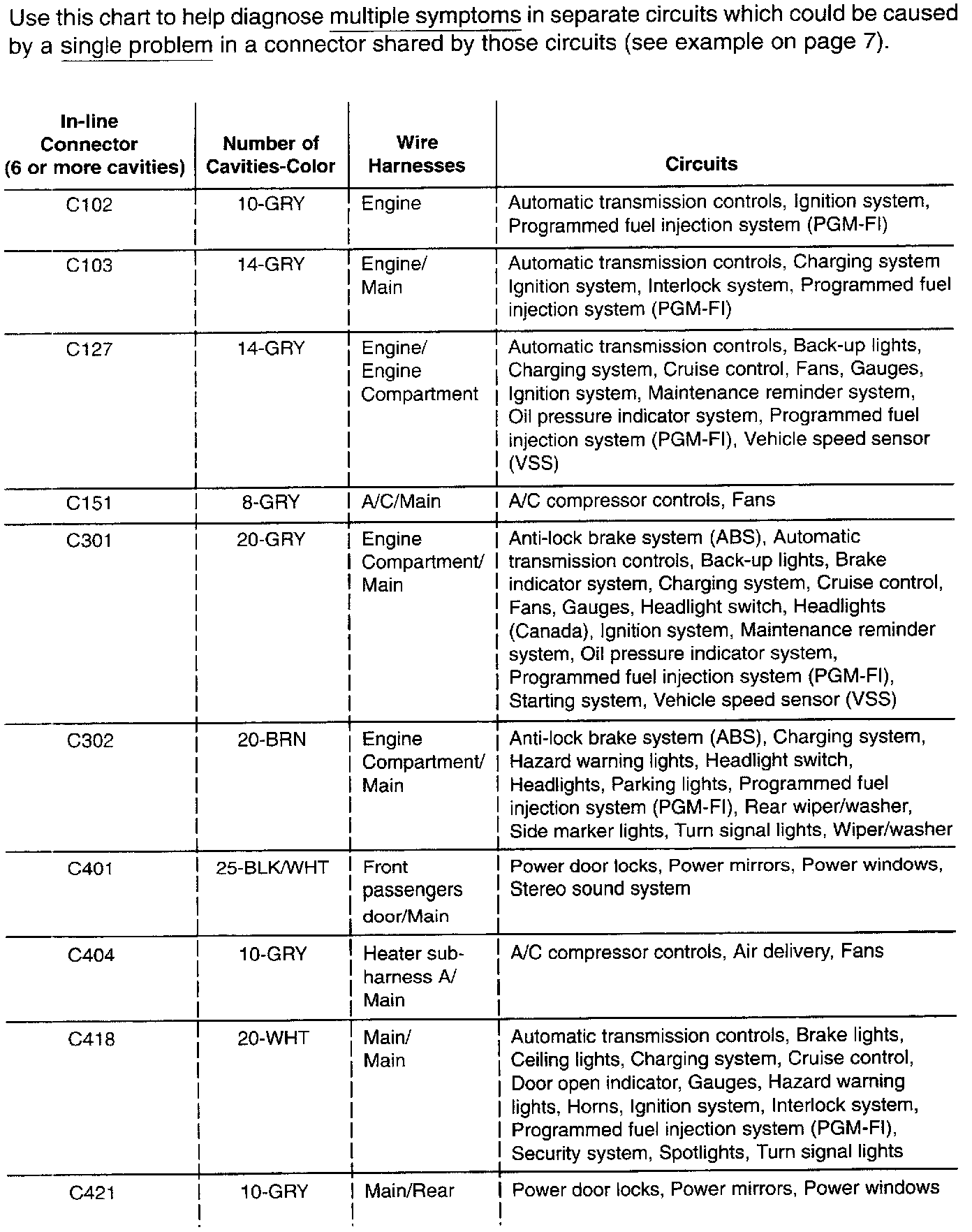

In-Line Connector Circuit Identification:
In-Line Connector Circuit Identification:
