Key-In/Seat Belt Reminder System
See
Figure
for connector terminal identification.

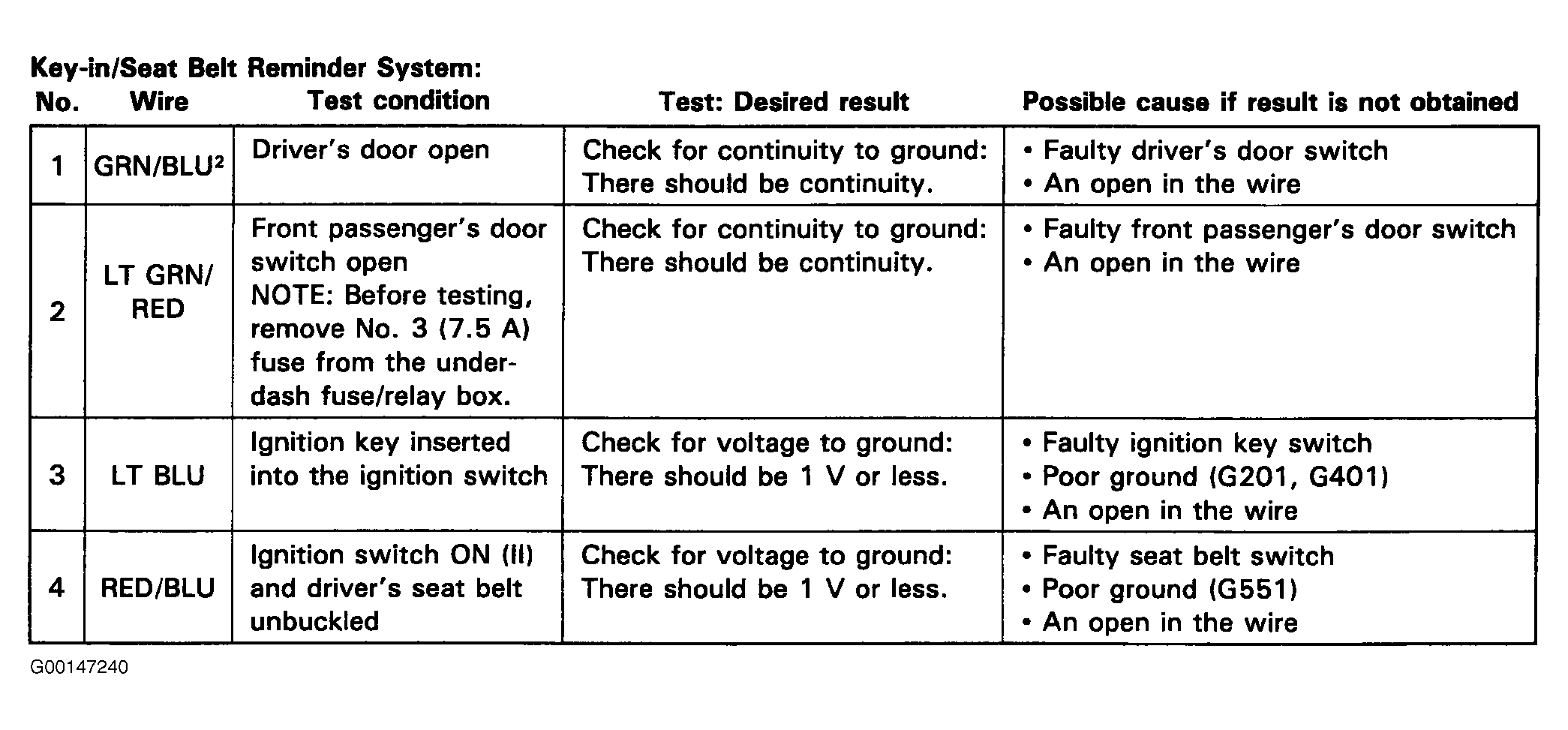

Fig 1: Key-In/Seat Belt Reminder System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
