Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |
| Fuse/Relay Block |
| ABS Fuse/Relay |
In engine compartment near ABS modulator unit. See Figure
. |
| Engine Compartment |

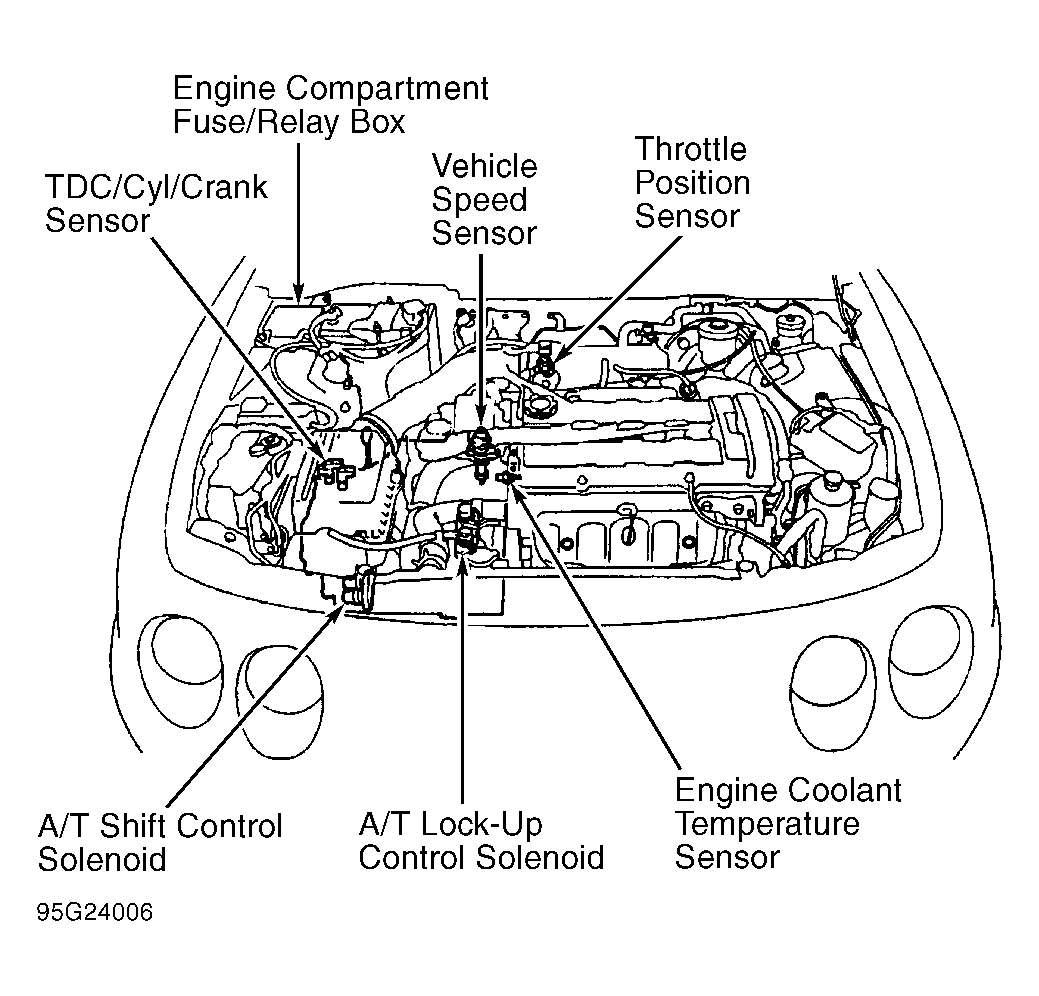

Right side of engine compartment, near battery. See Figure
. |
| Passenger Compartment |
Under left side of dashboard. |
