Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit (Hatchback) | Behind right quarter panel. |
| ABS Control Unit (Sedan) | On right side of luggage compartment, behind trim panel. See Figure . |
| ABS Modular Unit | In engine compartment, near ABS fuse relay block. See Figure . |
| Chime Module | Behind center of dash. |
| Cruise Control Unit | Under left side of dash, above fuse/relay block. |
| Daytime Running Light Control Unit (Canada) | Behind left side kick panel. |
| Engine Control Module (ECM) | Right side of kick panel. See Figure . |

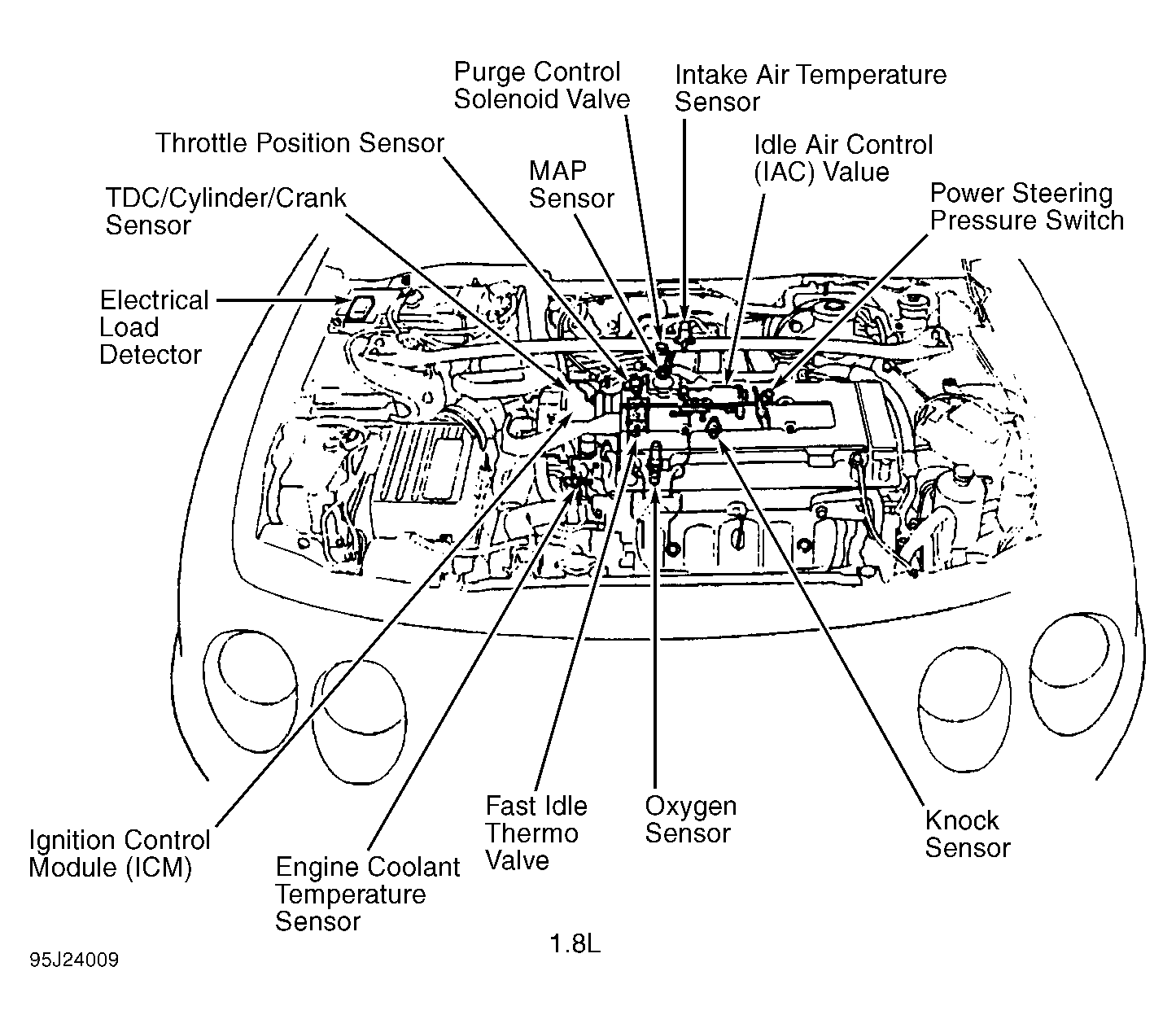

| ICM (1.8L) Ignition Control Module (ICM) | Inside distributor. See Figure . |
| Integrated Control Unit | On rear of passenger compartment fuse/relay block. |
| Interlock Control Unit (A/T) | Under left side of dash, above fuse/block. |
| Power Door Lock Control Unit | In left side of door. |
| Power Window Control Unit | Integral with driver's power window switch. |
| Radiator Fan Control Module | Behind center of dash, on right side of heater assembly. |
| Security Control Unit | Below glove box. |
| Transmission Control Module (TCM) | Behind left hand kick panel. |
